Virtual Connect server profiles 209
b.

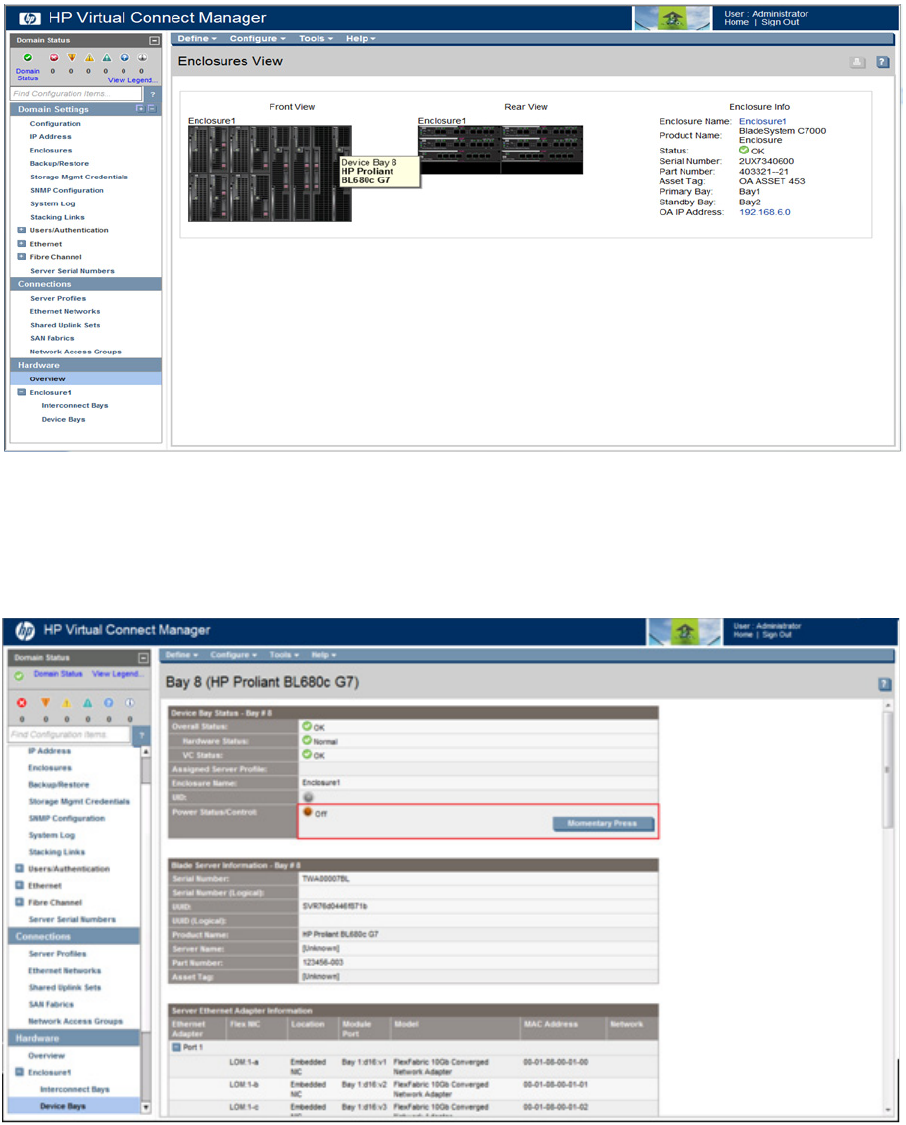

Hover your mouse over each server blade in the Front View of the enclosure to find the HP ProLiant
BL680c G7 Server Blade, and then click the server blade.
The Server Bay Status screen appears. You can also view this screen by clicking the HP ProLiant
BL680c G7 Server Blade device bay from the Device Bays link in the Hardware section in the left
navigation tree.
c. Be sure that the Power Status/Control status value is Off. If the status is On, click Momentary Press
to power down the server blade.
2. Add a SAN fabric.
a. Click SAN Fabrics in the left navigation tree or select SAN Fabric from the Define menu at the top of
the screen.
