Virtual Connect modules 229
Row Description
Interconnected Trays
Number of interconnect trays in the enclosure

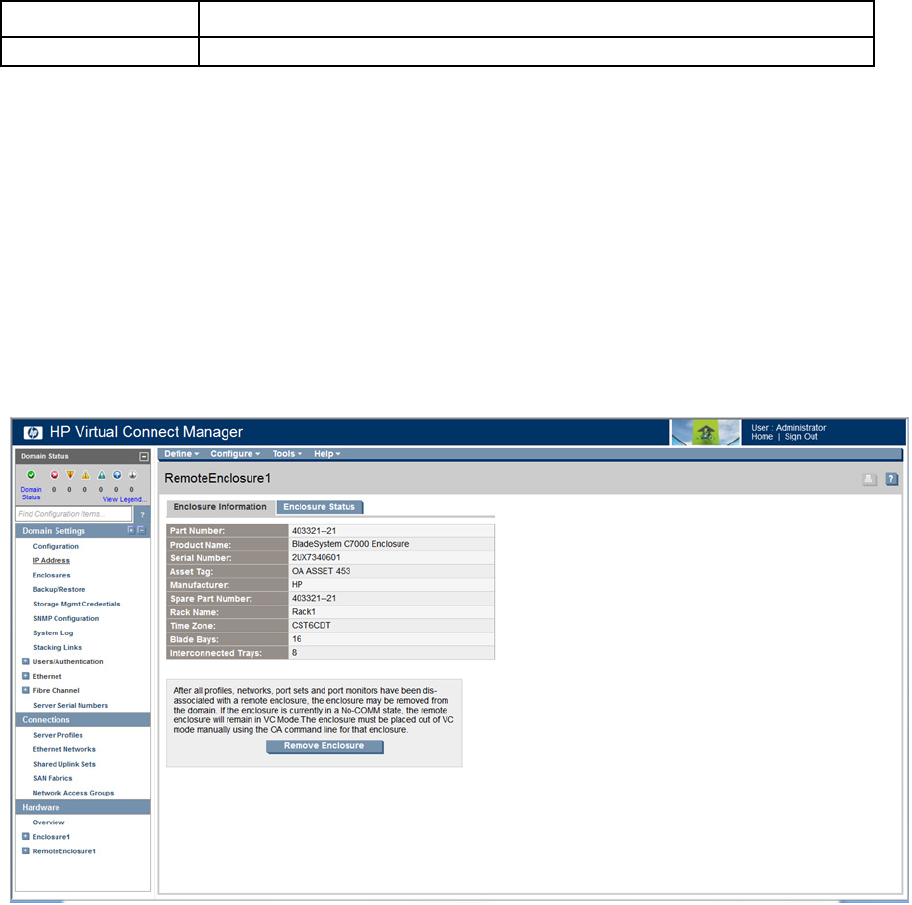

Removing an enclosure
To remove a remote enclosure from the domain:
1. Disassociate all profiles, networks, port sets, and port monitors from the enclosure.
If the enclosure is currently in a No-COMM state, the remote enclosure remains in VC mode. The
No-COMM condition must be repaired prior to the enclosure removal.
2. Take the enclosure out of VC mode manually with the Onboard Administrator command line for that
enclosure.
3. Click Remove Enclosure.
You can also remove an enclosure by selecting the Enclosures link under Domain Settings in the left
navigation tree.
