Virtual Connect domains 31

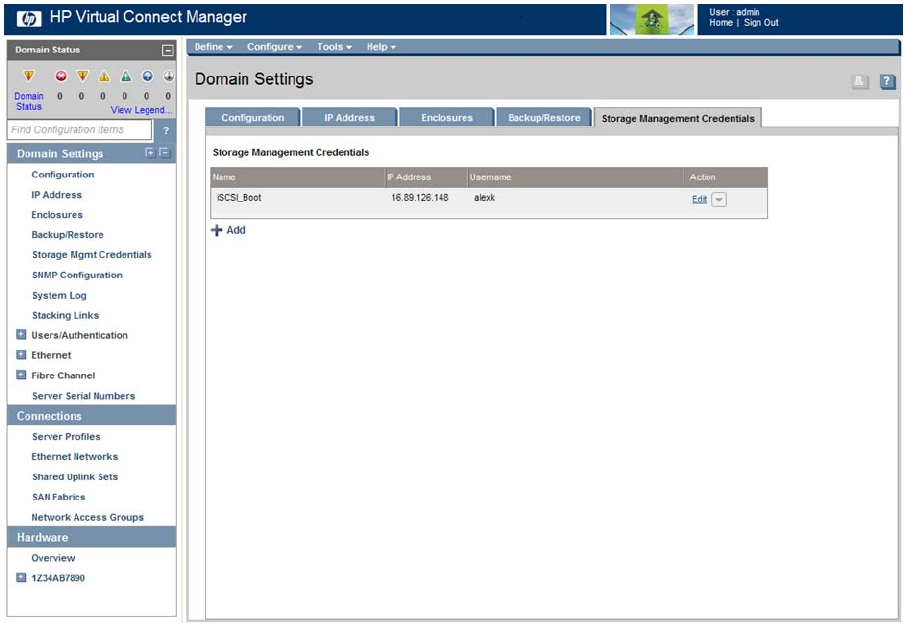

4.
Enter the administrator password in the Password field.
5. Re-enter the administrator password in the Confirm Password field.
6. Click Apply.
Managing SNMP
Use the following screens to manage the domain SNMP configuration:
• SNMP Configuration (VC-Enet) (on page 41)
o Enable SNMP on VC-Enet modules in the domain
o Configure SNMP access
o Add, modify, or delete a trap destination
• SNMP Configuration (VC-FC) (on page 45)
o Enable SNMP on VC-FC modules in the domain
o Enable SMI-S on VC-FC modules in the domain
o Configure SNMP access
o Add, modify, or delete a trap destination
SNMP overview
SNMP is used by network management systems to monitor network-attached devices for conditions that
require administrative attention. SNMP consists of a set of standards for network management, including an
Application Layer protocol, a database schema, and a set of data objects.
