The cluster in Figure 3 (page 10), shows FM failover from StoreAll node 1 to StoreAll node 2:
• StoreAll node 1 is servicing file client requests to 10.30.214.202 (StoreAll node 1–bond0:2).
• StoreAll node 2 is servicing file client requests to 10.30.214.203 (StoreAll node 2–bond0:2).
• Fusion Manager is active on StoreAll node 2, accepting requests to 10.30.214.201 (StoreAll
node 1–bond0:0).
After FM migration, StoreAll node 1 has two active interfaces:
• bond0 is the cluster network interface
• bond0:0 is not active; the Fusion Manager could move back to this interface if requested
• bond0:2 is a user network VIF for file services from StoreAll node 1
• bond0:3 is not active, but is provisioned for failover of file services duties from StoreAll node
2
After FM migration, StoreAll node 2 has two active interfaces:
• bond0 is the cluster network interface
• bond0:0 is handling requests for the active Fusion Manager
• bond0:2 is a user network VIF for file services from StoreAll node 2
• bond0:3 is not active, but is provisioned for failover of file services duties from StoreAll node
1

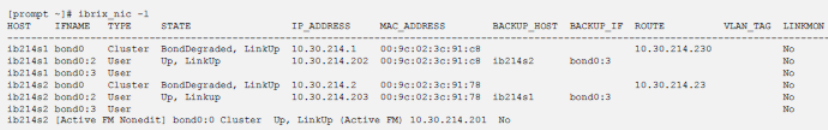

The ibrix_nic command shows the following after the FM migrates from StoreAll node 1 to
StoreAll node 2:
Sample ifconfig output for node 1 after migrating the FM from node 1 to node 2:
StoreAll node failover 11
