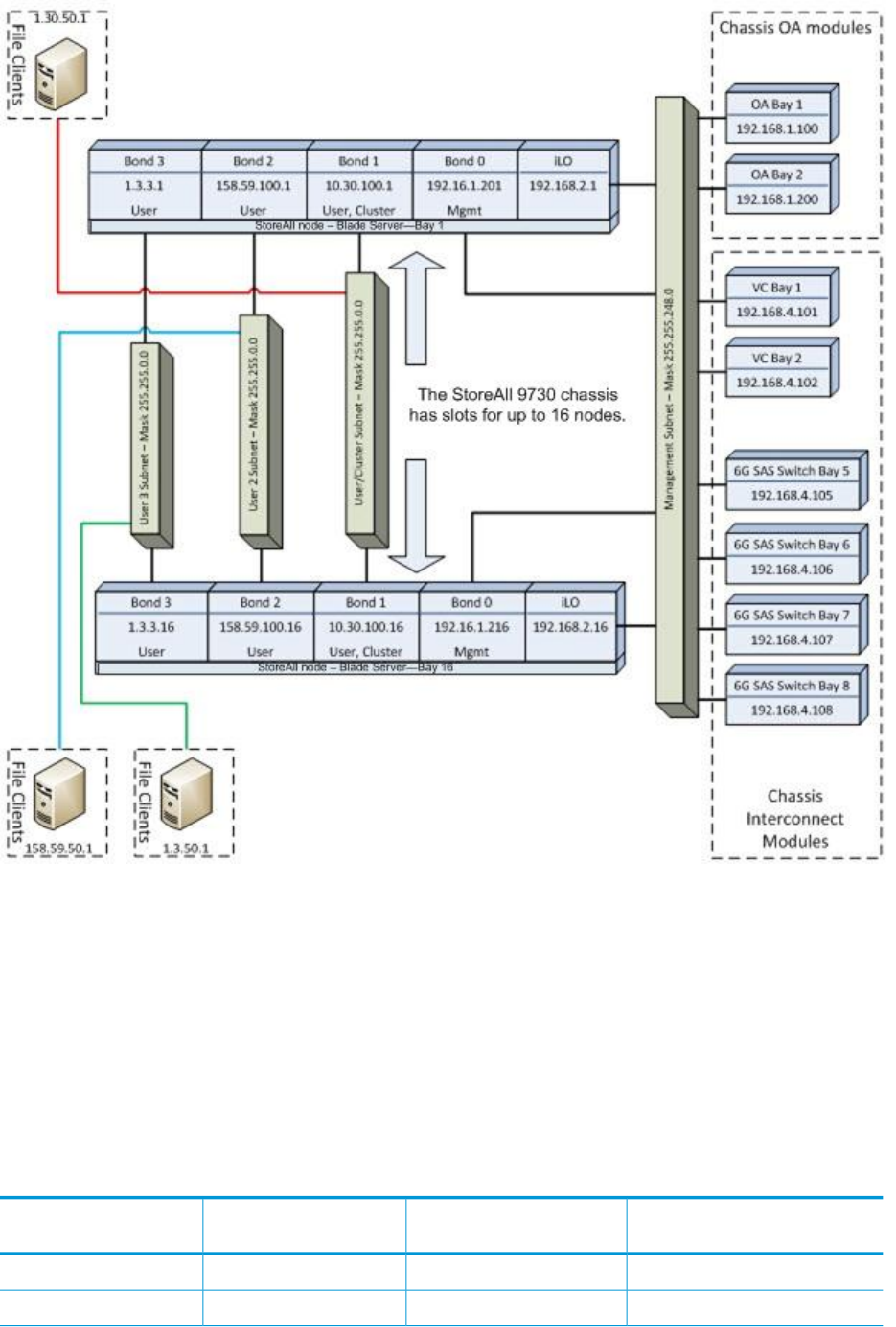

Figure 16 StoreAll 9730 additional physical user networks — logical view
When correctly configured the following should work:
• Nodes should be able to ICMP ping all of the other network attached components, both on
the user/cluster subnet and the management subnet.
• File Clients should be able to ICMP ping the nodes.
• The protocols listed in Table 3 (page 27) must work between the components, and should not
be blocked by intervening firewalls or routers.
IP address usage
In this configuration, the StoreAll 9730 requires the following IP addresses:
Table 10 StoreAll 9730 — IP addresses for one additional physical user network
Maximum number of addresses
Minimum number of
addressesSubnetComponent
162user/clusterNodes
1616managementiLO
Additional physical user networks 47
