8. Disconnect the power cable (1) and data cable (2) from the rear of the optical drive.

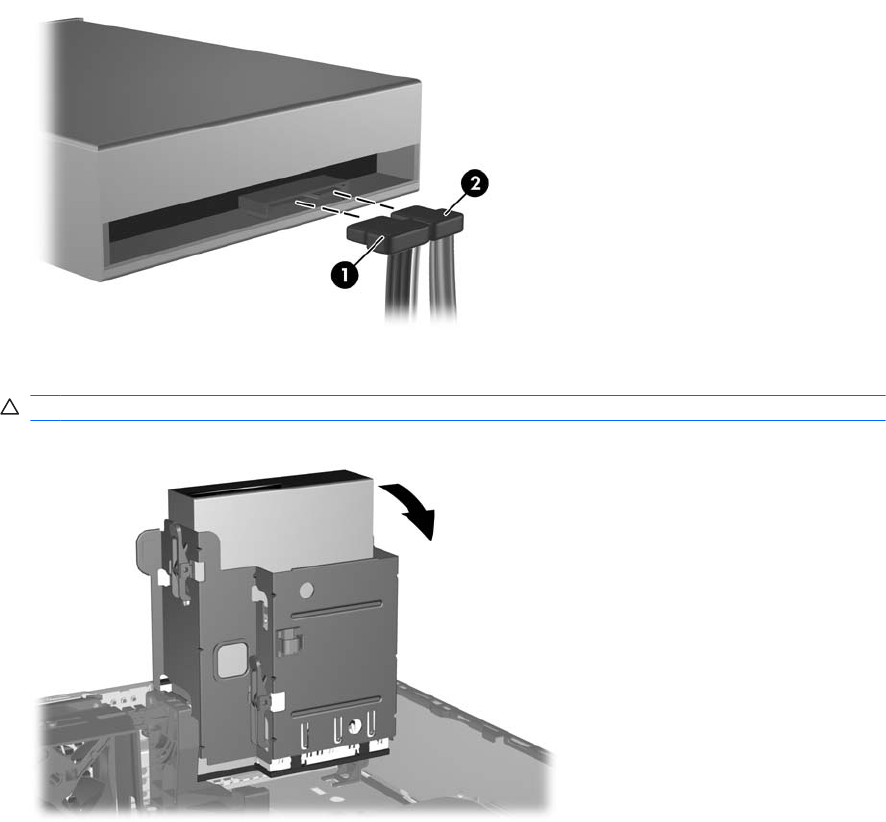

Figure 2-23 Disconnecting the Power and Data Cables
9. Rotate the drive cage back down to its normal position.
CAUTION: Be careful not to pinch any cables or wires when rotating the drive cage down.
Figure 2-24 Rotating the Drive Cage Down
ENWW Installing and Removing Drives 31
