14. Rotate the drive cage back down to its normal position.
CAUTION: Be careful not to pinch any cables or wires when rotating the drive cage down.

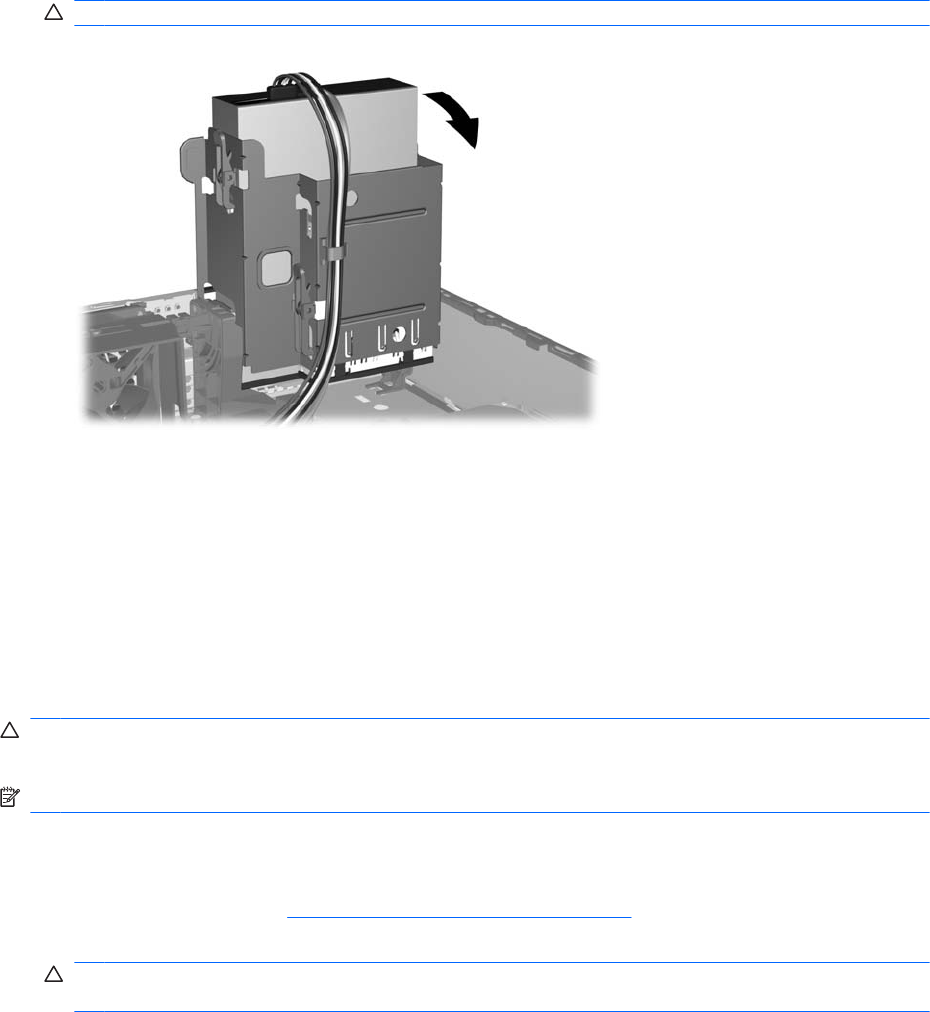

Figure 2-30 Rotating the Drive Cage Down
15. Replace the front bezel and access panel.
16. If the computer was on a stand, replace the stand.
17. Reconnect the power cord and turn on the computer.
18. Lock any security devices that were disengaged when the access panel was removed.
The system automatically recognizes the drive and reconfigures the computer.
Removing an External 3.5-inch Drive
CAUTION: All removable media should be taken out of a drive before removing the drive from the
computer.
NOTE: The 3.5-inch drive bay may contain a diskette drive or a media card reader.
The 3.5-inch drive is located underneath the optical drive. You must remove the optical drive before
removing the external 3.5-inch drive.
1. Follow the procedure in
Removing an Optical Drive on page 30 to remove the optical drive and
access the 3.5-inch drive.
CAUTION: Ensure that the computer is turned off and that the power cord is disconnected from
the electrical outlet before proceeding.
ENWW Installing and Removing Drives 35
