Media Card Reader Components
The media card reader is an optional device available on some models only. Refer to the following

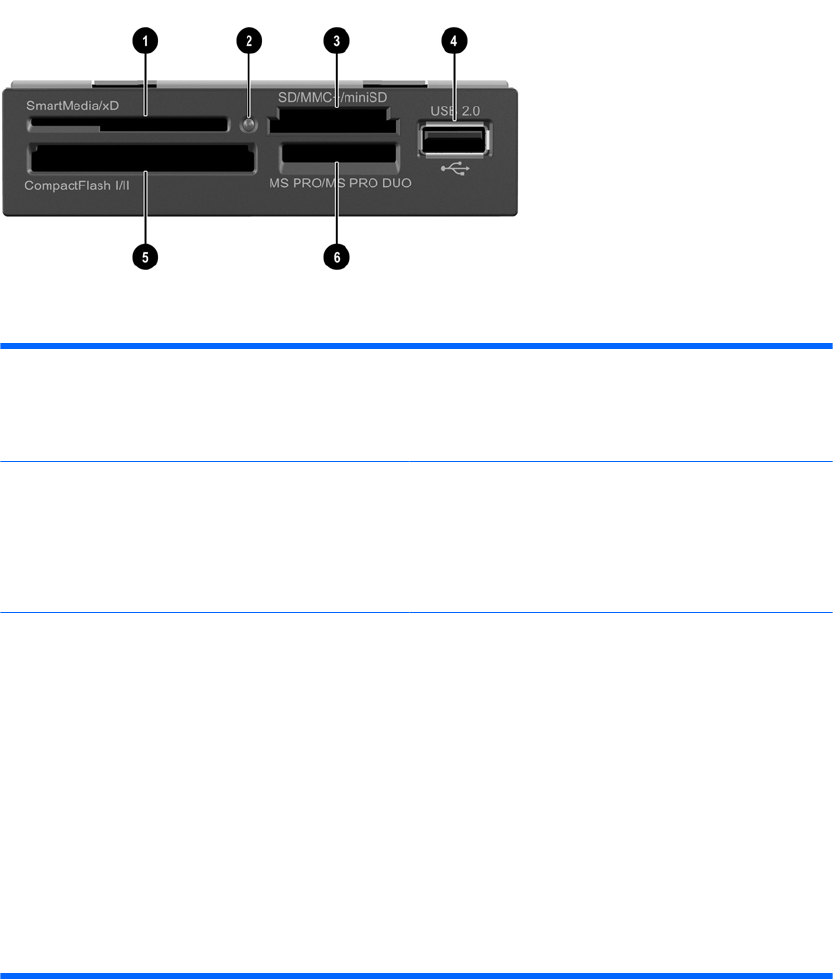

illustration and table to identify the media card reader components.
Figure 1-3 Media Card Reader Components
Table 1-2 Media Card Reader Components
1 SmartMedia/xD
●
3.3V SmartMedia Card (SM)
●
D-Picture Card (xD)
4 USB (Universal Serial Bus) Port
2 Media Card Reader Activity Light 5 CompactFlash I/II
●
CompactFlash Card Type 1
●
CompactFlash Card Type 2
●
MicroDrive
3 SD/MMC+/miniSD
●
Secure Digital Card (SD)
●
MiniSD
●
MultiMediaCard (MMC)
●
Reduced Size MultiMediaCard (RS MMC)
●
MultiMediaCard 4.0 (Mobile Plus)
●
Reduced Size MultiMediaCard 4.0 (MMC
Mobile)
●
MMC Micro (adapter required)
●
MicroSD (T-Flash) (adapter required)
6 MS PRO/MS PRO DUO
●
Memory Stick (MS)
●
MagicGate Memory Stick (MG)
●
MagicGate Memory Duo
●
Memory Stick Select
●
Memory Stick Duo (MS Duo)
●
Memory Stick PRO (MS PRO)
●
Memory Stick PRO Duo (MS PRO Duo)
ENWW Media Card Reader Components 3
