3. Remove the screws on the back of the monitor that connect the monitor panel with the pedestal
base.
a. On the double-hinged base, there are four screws that connect the monitor panel to the
pedestal base.

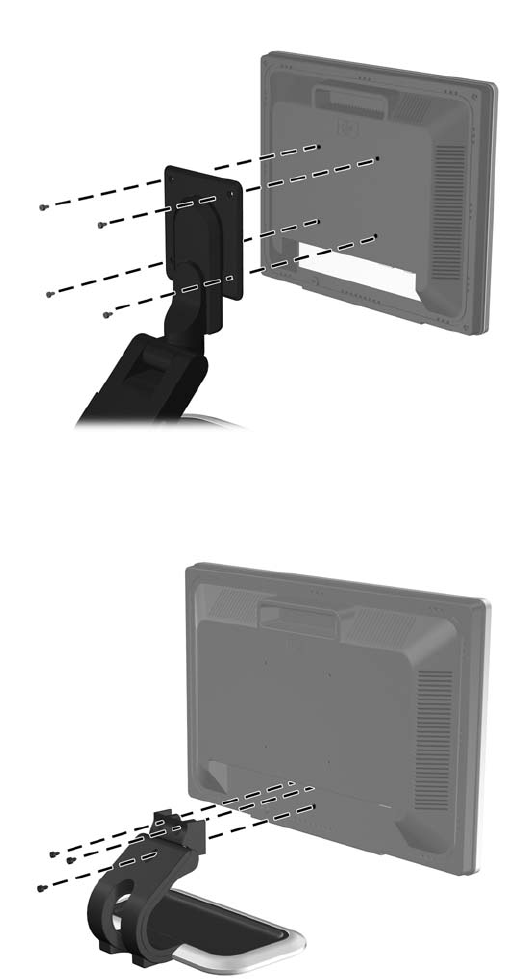

Figure 3-16 Removing the Double-Hinged Pedestal Base
b. On the single-hinged base, there are three screws that connect the monitor panel to the
pedestal base.
Figure 3-17 Removing the Single-Hinged Pedestal Base
4. Lift up on the pedestal base to remove it from the monitor display head.
Removing the Monitor Pedestal Base 17
