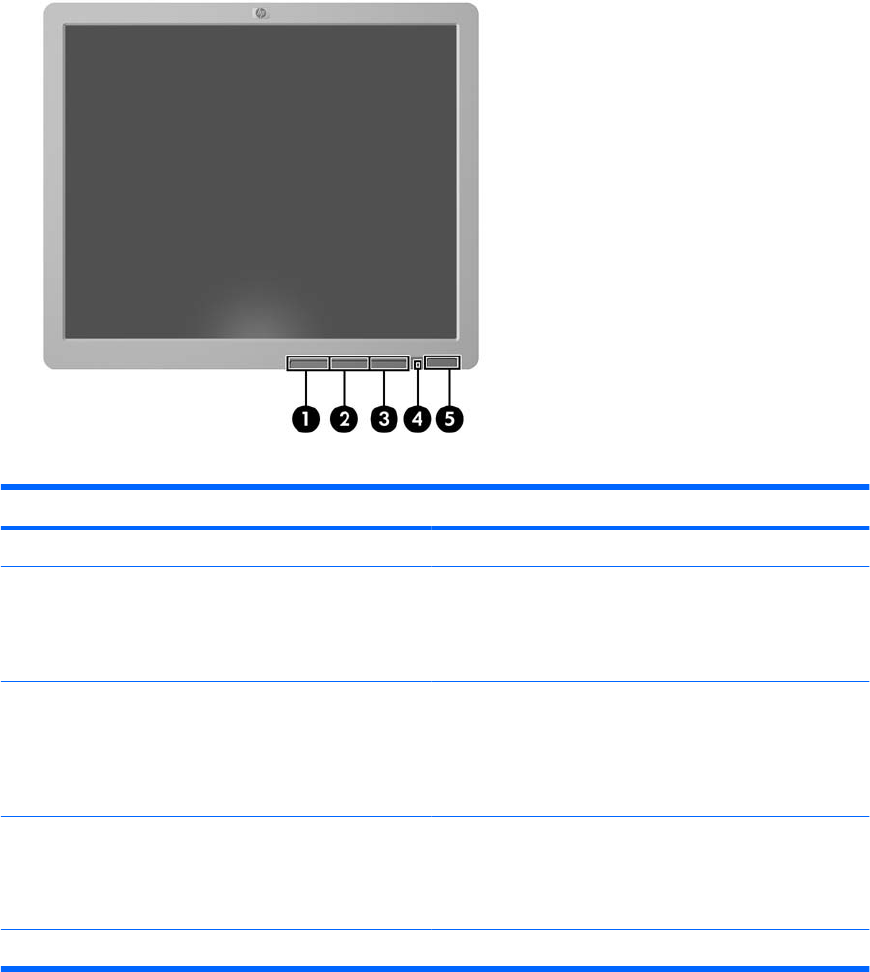

Front Panel Controls
Table 4-1 Monitor Front Panel Controls
Control Function
1 Menu Opens, selects or exits the OSD menu.
2 – (Minus)/Auto
●
Navigates backward through the OSD menu and
decreases adjustment levels.
●
When the OSD menu is inactive, activates the auto
adjustment feature to optimize the screen image.
3 + (Plus)/Input
●
Navigates forward through the OSD menu and
increases adjustment levels.
●
When the OSD menu is inactive, an Input button
chooses the video input signal input, VGA or DVI (select
models have input select function).
4 Power LED Green = Fully powered.
Amber = Sleep mode.
Flashing Amber = Sleep Timer mode.
5 Power Turns the monitor on or off.
24 Chapter 4 Operating the Monitor
