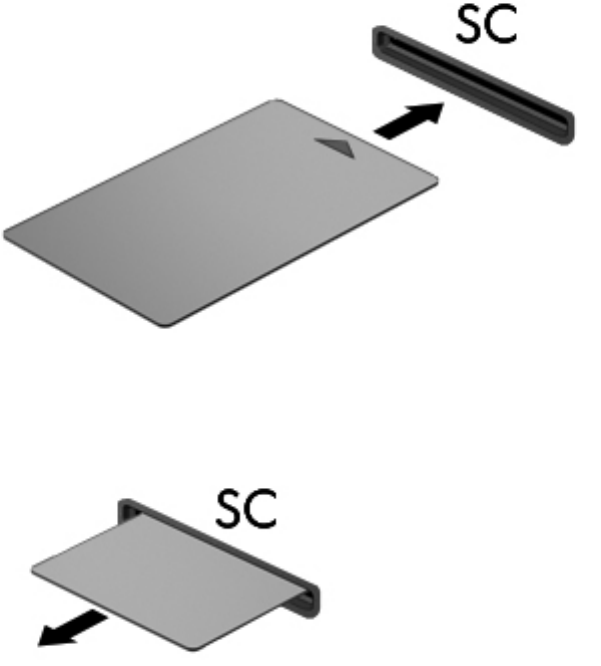

Inserting a smart card
1. Hold the card label-side up, and gently slide the card into the smart card reader until the card is seated.
2. Follow the on-screen instructions for logging on to the computer using the smart card PIN.
Removing a smart card
â–²
Grasp the edge of the smart card, and then pull it out of the smart card reader.
Using a USB device
Universal Serial Bus (USB) is a hardware interface that can be used to connect an optional external device,
such as a USB keyboard, mouse, drive, printer, scanner, or hub.
Some USB devices may require additional support software, which is usually included with the device. For
more information about device-specific software, see the manufacturer's instructions. These instructions
may be provided with the software, on disc, or on the manufacturer’s website.
The computer has at least 1 USB port that supports USB 1.0, 1.1, 2.0, or 3.0 devices. Your computer may also
have a USB charging port that provides power to an external device. An optional docking device or USB hub
provides additional USB ports that can be used with the computer.
Using a USB device 53
