Specifications 12
Pin Function Color match Function Pin
7
Brown
7
8
Brown/White
8

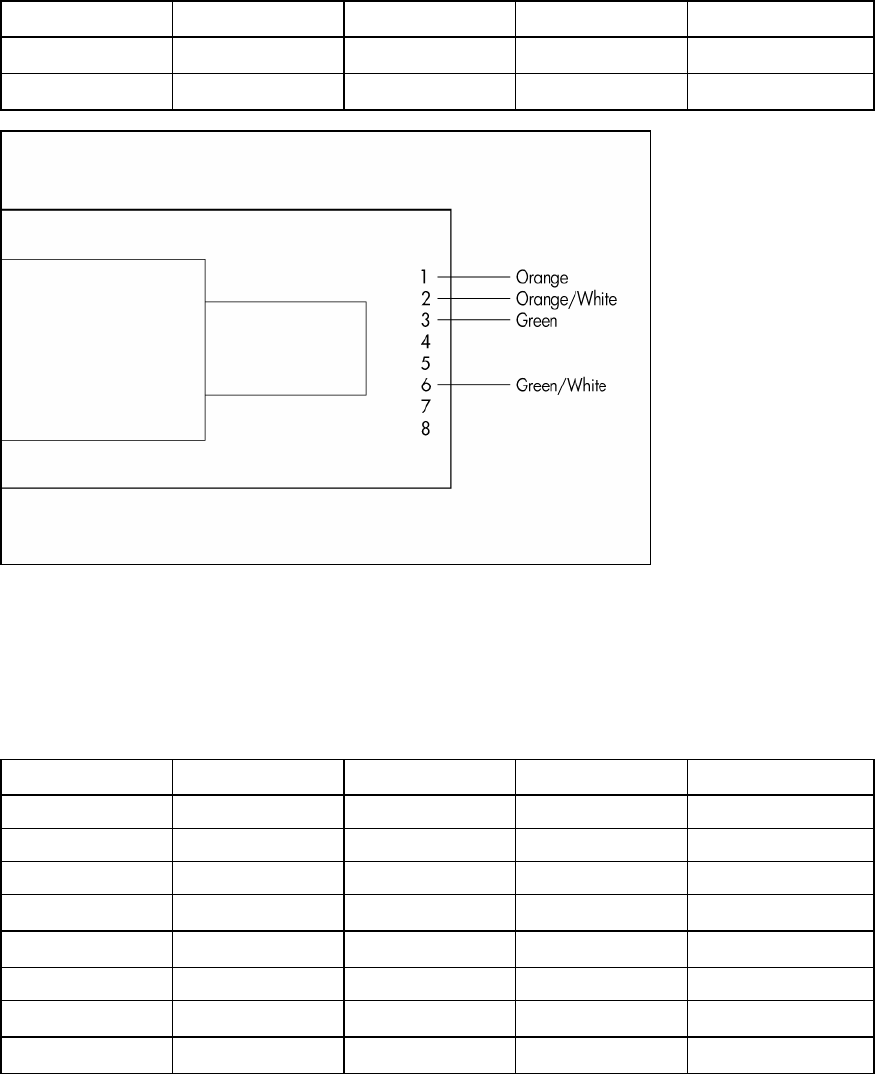

10/100 pinouts using external crossover through twisted-pair
media
When the crossover function is not provided within the hub or switch, you must implement the crossover
through the twisted-pair media using the physical pinouts indicated.
Pin Function Color match Function Pin
1 TD+ Orange RD+ 3
2 TD- Orange/White RD- 6
3 RD+ Green TD+ 1
4
Blue/White
5
Blue
6 RD- Green/White TD- 2
7
Brown
8
Brown/White
