Specifications 14

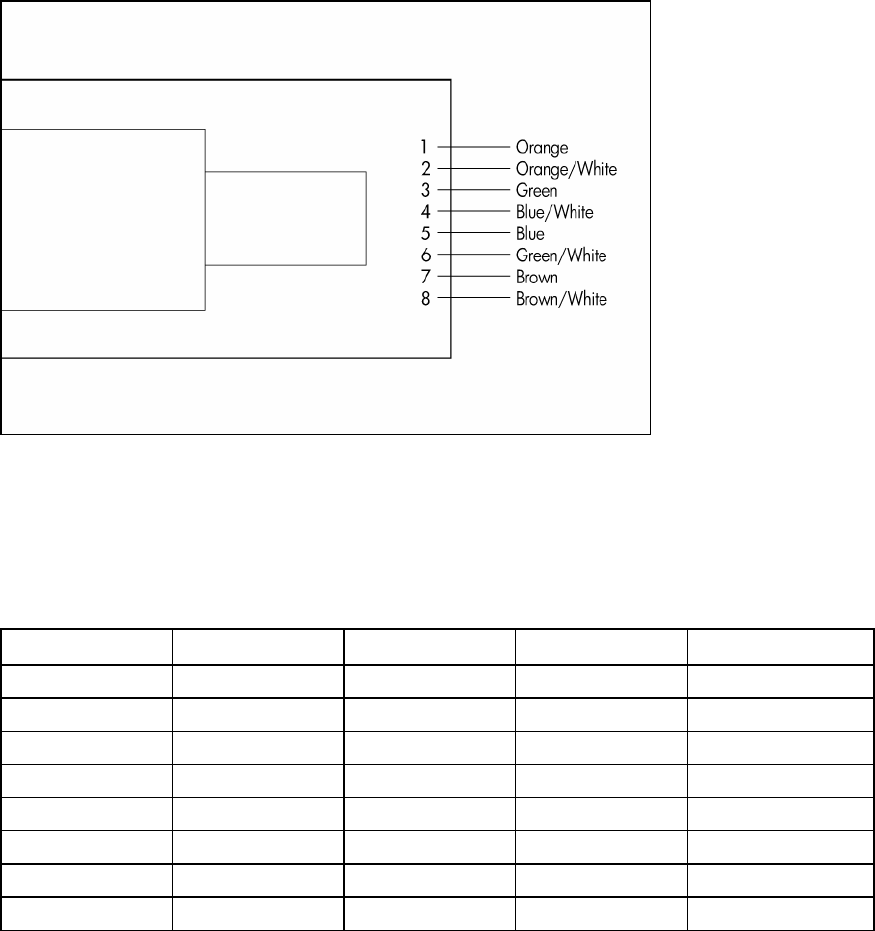

Gigabit over copper pinouts using external crossover through
twisted pair media
When a crossover function is not provided by the adapter, hub or switch, you must implement it through
the twisted-pair media using the physical pinouts indicated.
Pin Function Color match Function Pin
1 BI_DA+ Orange BI_DB+ 3
2 BI_DA- Orange/White BI_DB- 6
3 BI_DB+ Green BI_DA+ 1
4 BI_DC+ Blue/White BI_DD+ 7
5 BI_DC- Blue BI_DD- 8
6 BI_DB- Green/White BI_DA- 2
7 BI_DD+ Brown BI_DC+ 4
8 BI_DD- Brown/White BI_DC- 5
