Introduction 7
LED indicators

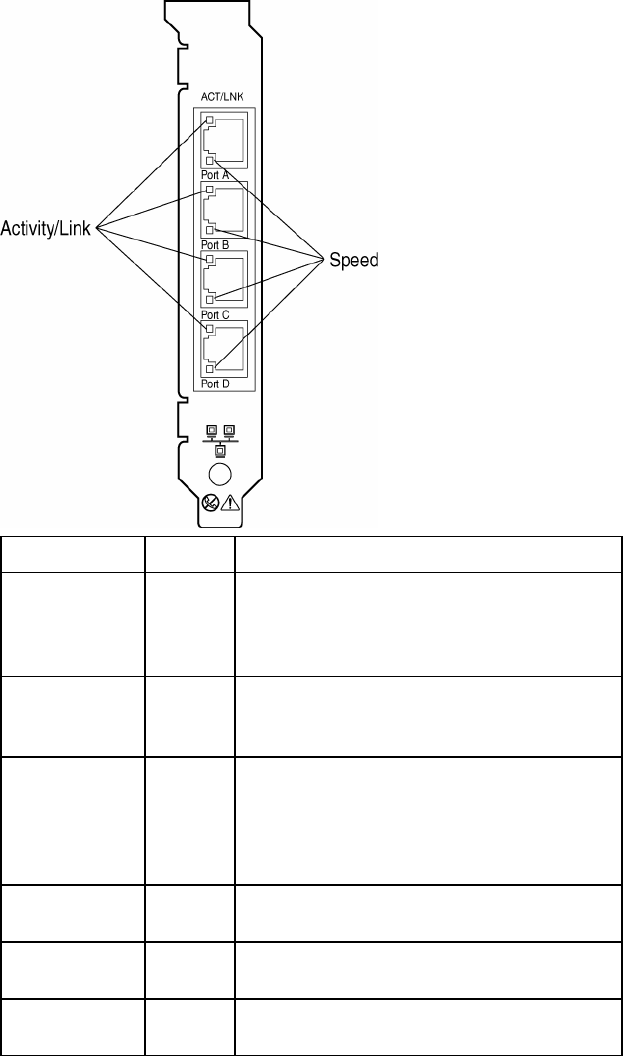

The NC340T adapter has four auto-negotiating 10/100/1000 RJ-45 ports. LED indicators show
activity/link and port speed.
LED indicator Status Description
Activity/Link On This mono-color green LED indicates that the
link to the adapter is established. The adapter is
receiving power and the cable connection is
working.
Off No link to the adapter is established. The
adapter is not receiving power or the cable
connection is faulty.
Flashing The adapter is sending or receiving network
data at 10/100/1000 Mb/s, as indicated by
the 10/100/1000 (speed) LED. The adapter is
receiving power, and the cable connection is
working.
Speed Off The adapter is sending or receiving network
data at 10 Mb/s.
Green The adapter is sending or receiving network
data at 100 Mb/s.
Orange The adapter is sending or receiving network
data at 1000 Mb/s.
