2. Attach the front fan to the card guide. Place the fan in the card guide with the fan label facing into
the card guide and the fan protector screen facing outward. Place the fan wire through the slot in
the card guide. Snap the fan into place in the card guide.

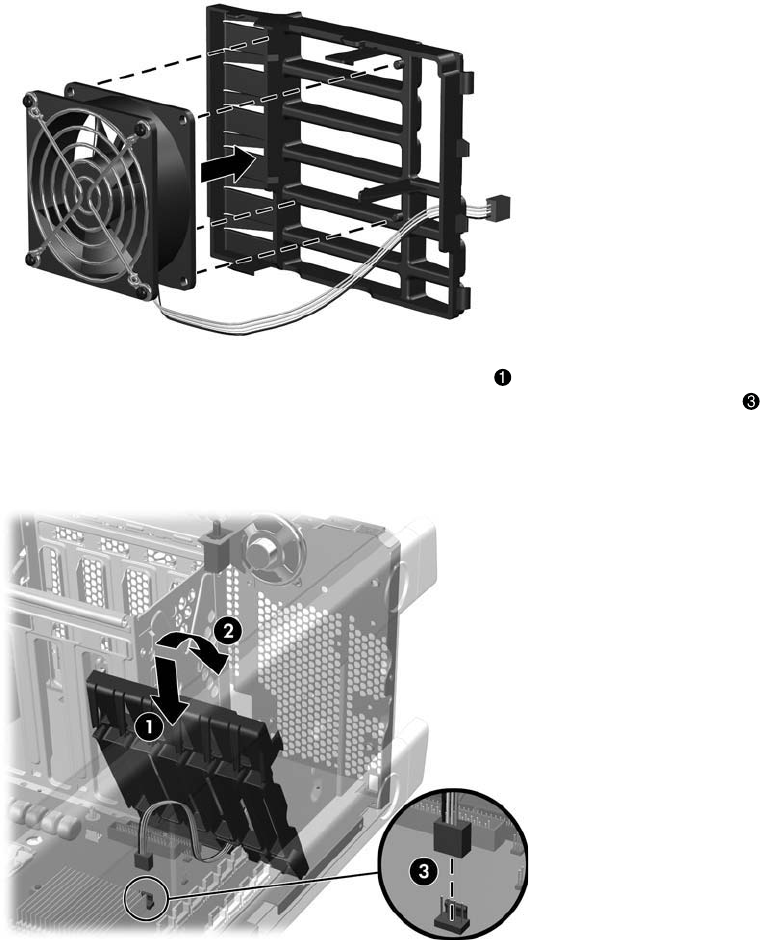

Figure 2 Attaching the front fan to the card guide
3.
Lower the front fan/card guide assembly into the chassis
, rotate it back
2
, and snap it into place.
Connect the front fan wire connector to the front fan connector on the system board
. Refer to
the service label on the workstation access panel to identify the front fan connector on the system
board.
Figure 3 Installing the front fan/card guide assembly in the chassis
ENWW Step 2—Installing the front PCI fan in the HP xw8600 Workstation 5
