6 Connector Information
This section provides each connector location on boards and function of each board. They will be
useful for your detecting the defective boards.

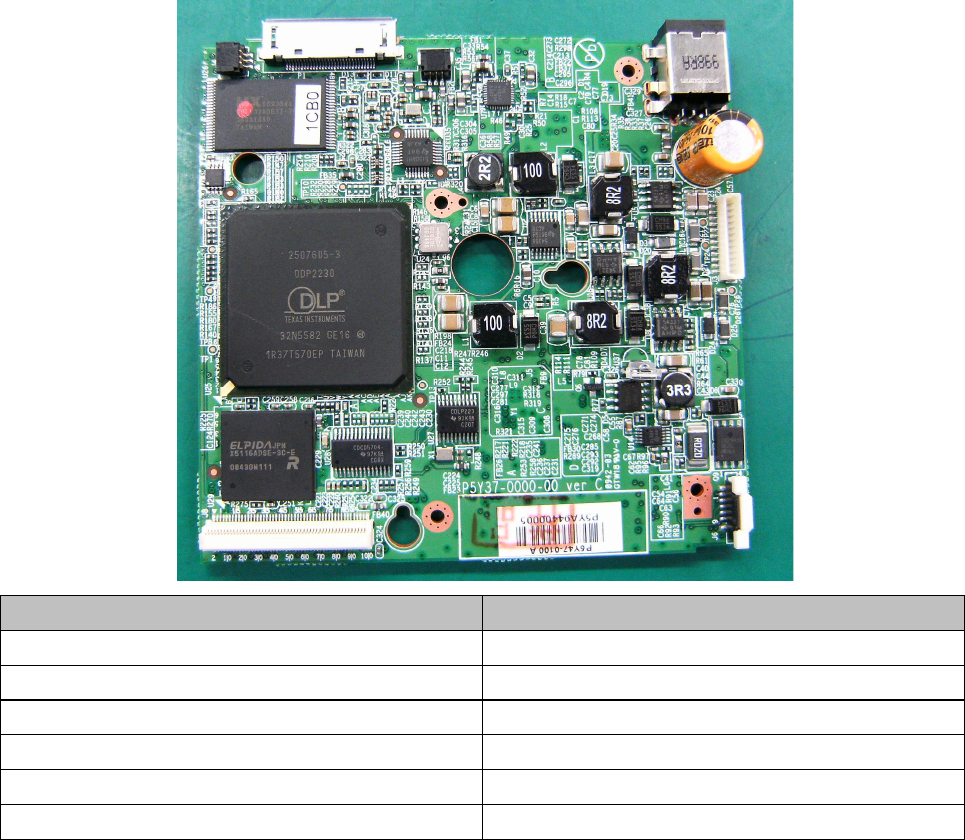

6.1 Main Board
Connector
Description
J2
DC-IN
J4
Fan 2
J5
Fan 1
J6
FFC Cable ( to keypad)
J8
DMD board
P1
I/O port
J 6
J 4
J 3
J 8
J 2
J 5
P 1
