MAC Address Management
Determining MAC Addresses
Menu: Viewing the Switch’s MAC Addresses
The Management Address Information screen lists the MAC addresses for:
■ Base switch (default VLAN; VID = 1)
■ Any additional VLANs configured on the switch.
Also, the Base MAC address appears on a label on the back of the switch.
Note The Base MAC address is used by the first (default) VLAN in the switch. This
is usually the VLAN named “DEFAULT_VLAN” unless the name has been
changed (by using the VLAN Names screen). On the switches covered in this
guide, the VID (VLAN identification number) for the default VLAN is always
“1”, and cannot be changed.
To View the MAC Address (and IP Address) assignments for VLANs
Configured on the Switch:
1. From the Main Menu, Select
1. Status and Counters
2. Switch Management Address Information
If the switch has only the default VLAN, the following screen appears. If
the switch has multiple static VLANs, each is listed with its address data.
Switch Base (or Default
VLAN) MAC address
Current IP Address
Assigned to the Switch

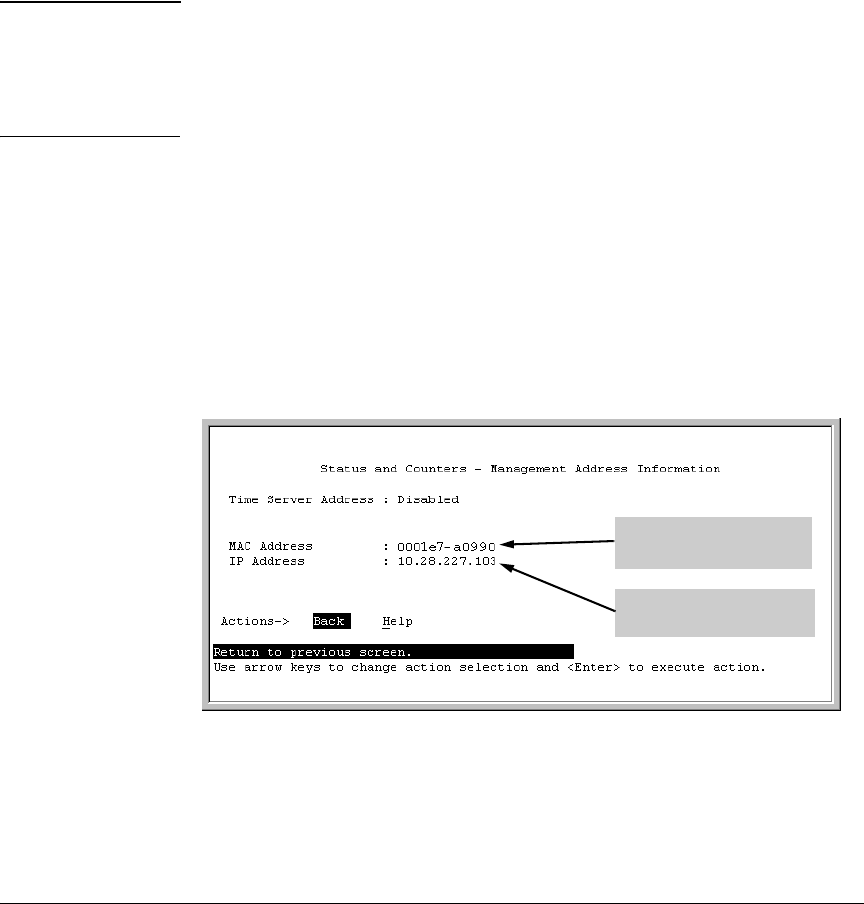

Figure D-1. Example of the Management Address Information Screen
D-4
