Removal and replacement procedures 16
3.

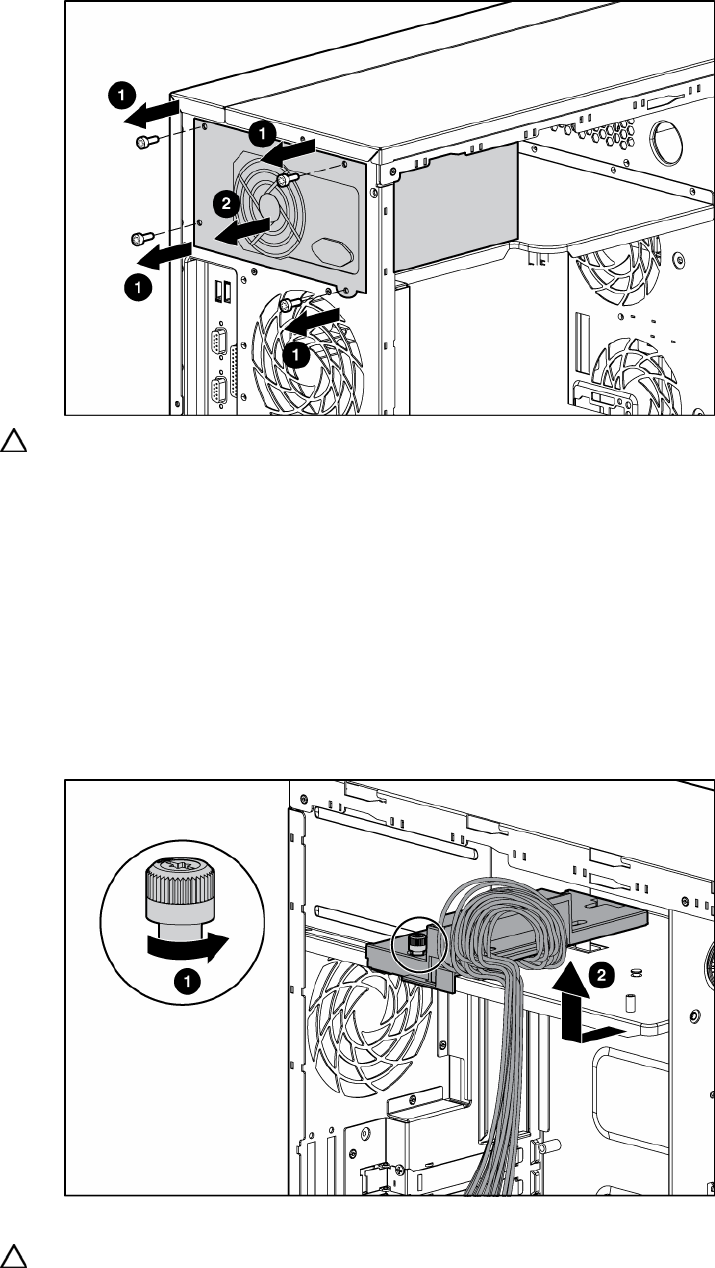

Remove the four screws from the chassis, and remove the power supply from the server.
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all bays
are populated with either a component or a blank.
To replace the component, reverse the removal procedure.
Hot-Plug Power Supply Backplane
To remove the component:
1. Remove the power supplies from the server.
2. Remove the access panel ("Access Panel" on page 12).
3. Remove cables from the components connected to the power supply backplane.
4. Remove the power supply backplane.
To replace the component, reverse the removal procedure.
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all bays
are populated with either a component or a blank.
