Removal and replacement procedures 17
Removing a hard drive blank

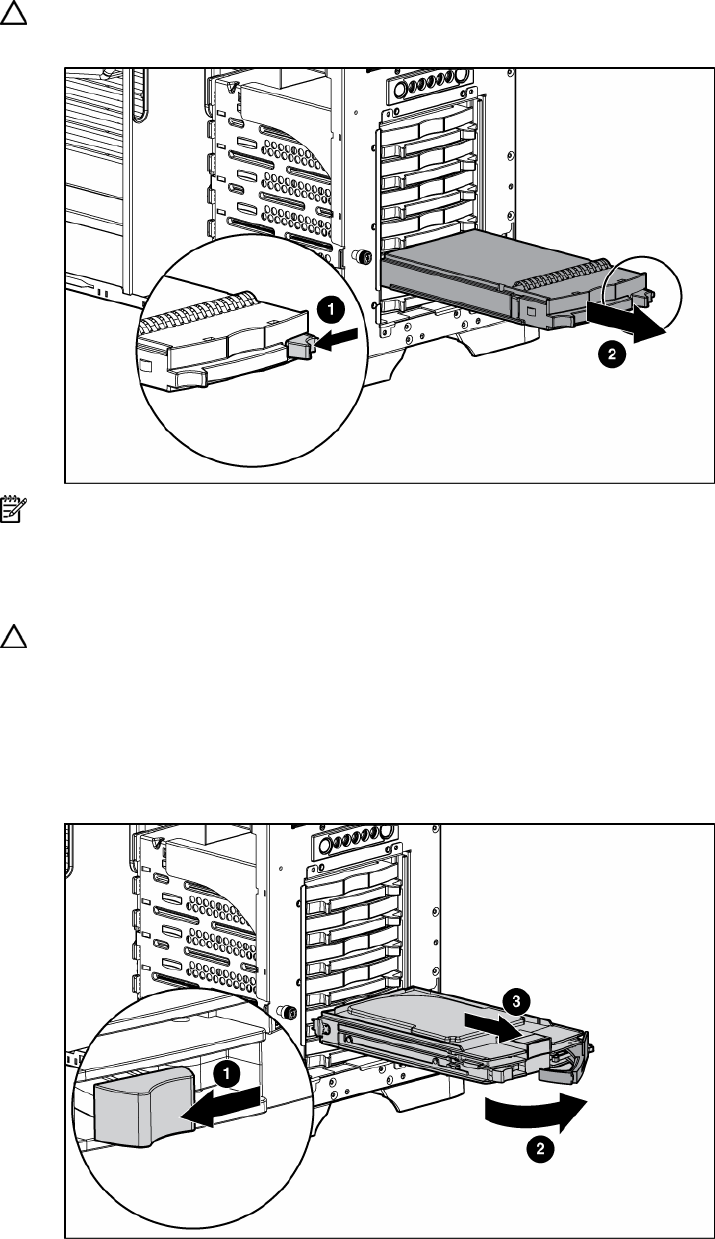

To remove a hard drive blank, push the lever to release the blank and pull out.
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all bays
are populated with either a component or a blank.
NOTE: Depending on model purchased, the server may look slightly different than shown.
Hot-Plug SCSI Hard Drive
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all bays
are populated with either a component or a blank.
To remove the component:
1. Back up all server data on the hard drive.
2. Open the front bezel ("Removing the front bezel (tower model)" on page 13).
3. Remove the hard drive.
