Removal and replacement procedures 18
To replace the component, reverse the procedure.
Non-hot-plug SCSI hard drive
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all bays
are populated with either a component or a blank.

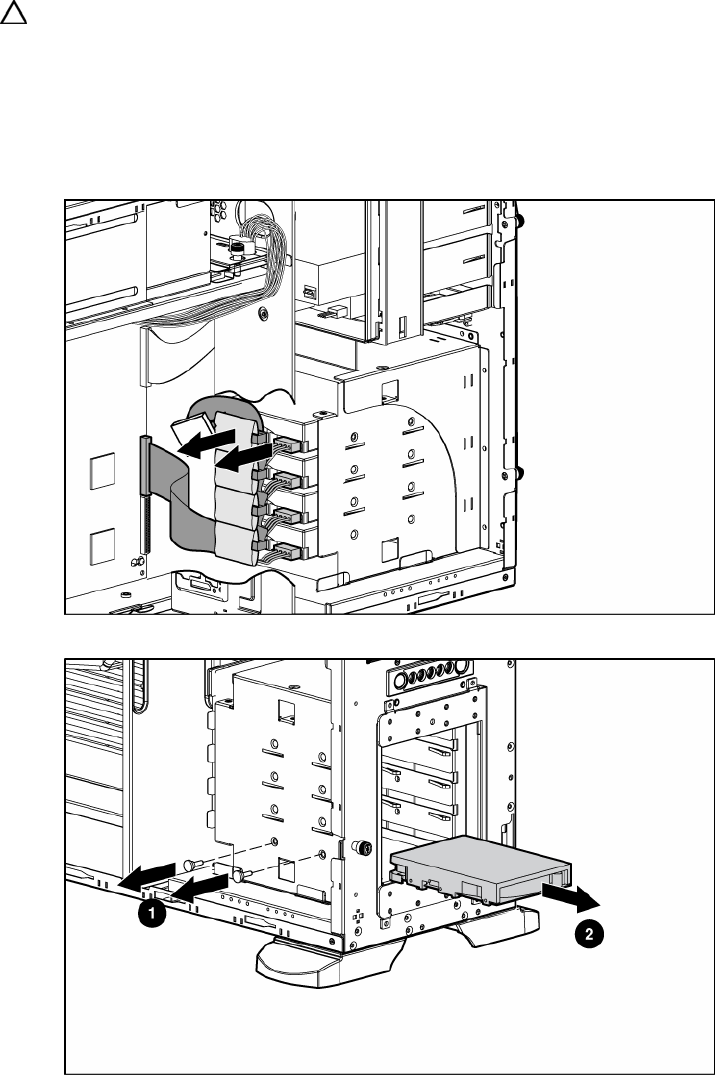

To remove the component:
1. Back up all server data on the hard drive.
2. Remove the access panel ("Access Panel" on page 12).
3. Disconnect the power cable and the four-device SCSI cable from the hard drive.
4. Remove screws from the hard drive bay, and remove the hard drive.
To replace the component:
1. Set the SCSI ID for the non-hot-plug SCSI hard drive. Refer to the documentation that ships with the
hard drive.
