Removal and replacement procedures 20
Expansion Slot Cover
To remove the component:
1. Remove the access panel ("Access Panel" on page 12).

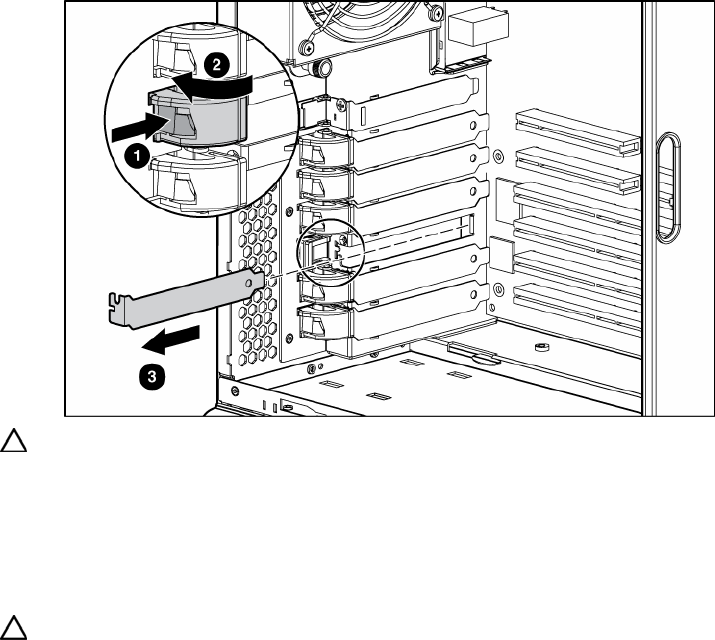

2. Remove the expansion slot cover.
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all PCI slots
have either an expansion slot cover or an expansion board installed.
To replace the component, reverse the removal procedure.
Expansion board
CAUTION: To prevent damage to the server or expansion boards, power down the server and remove all
AC power cords before removing or installing the expansion boards.
To remove the component:
1. Remove the access panel ("Access Panel" on page 12).
