Removal and replacement procedures 21
2.

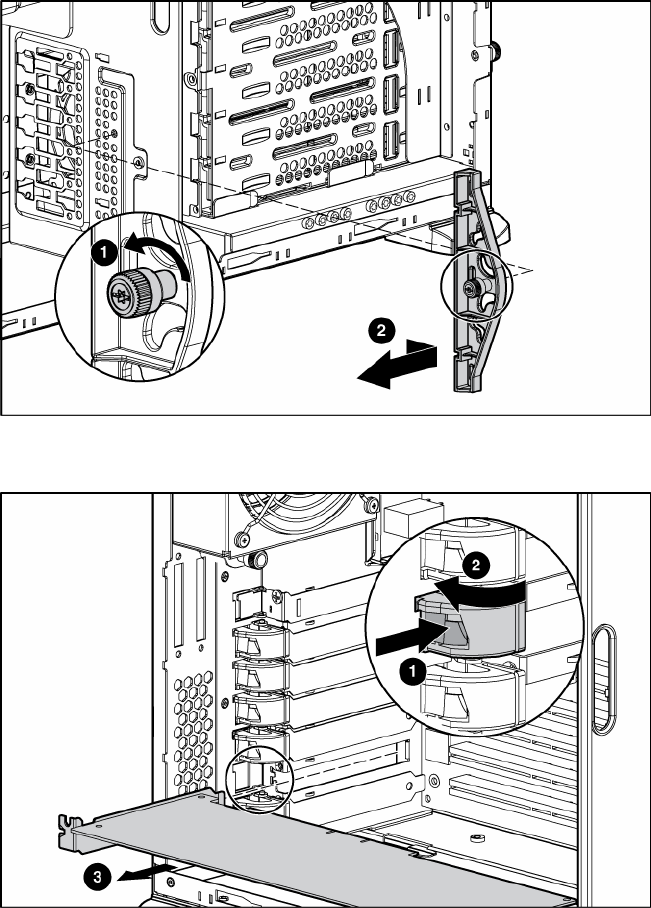

Remove the expansion board retainer.
3. Disconnect any internal or external cables from the expansion board.
4. Remove the expansion board.
5. Reinstall the expansion board retainer, then tighten the thumbscrew.
To replace the component, reverse the removal procedure.
CD-ROM drive
To remove the component:
1. Remove the access panel ("Access Panel" on page 12).
2. Disconnect the cables from the rear of the CD-ROM drive.
