Removal and replacement procedures 22
3.

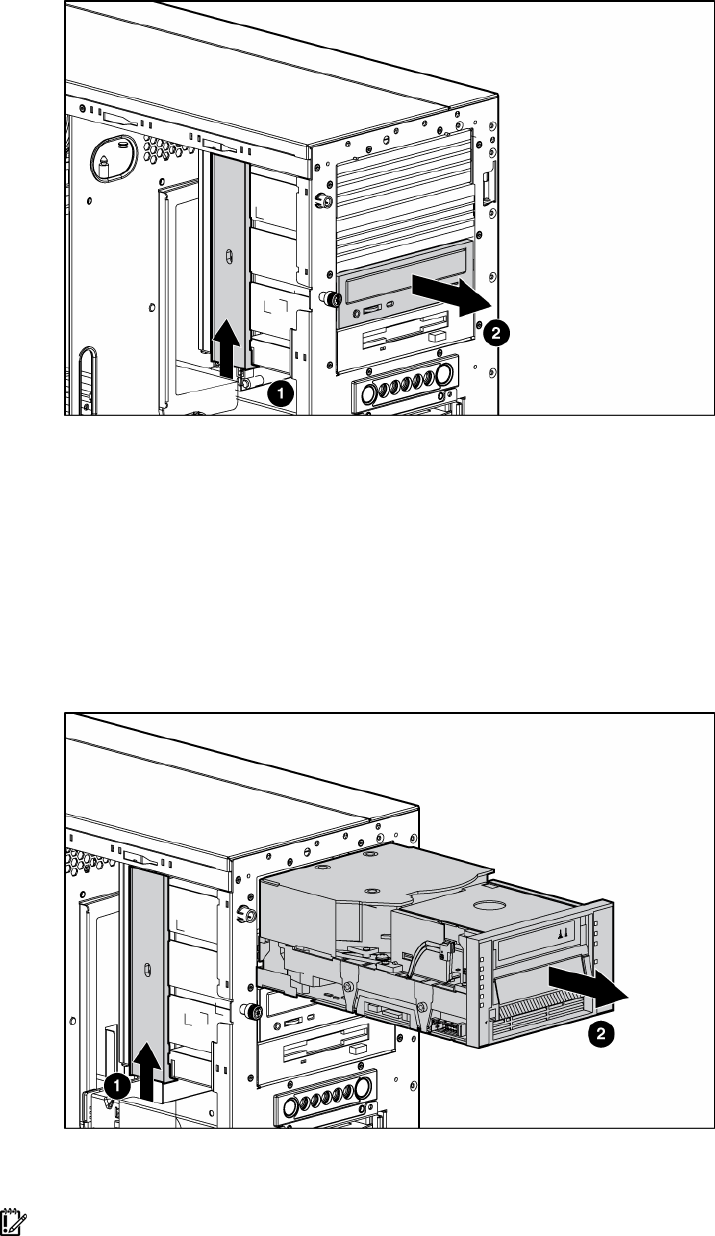

Push up on the release lever and push the drive partially out through the front of the server.
4. Remove the CD-ROM drive.
To replace the component, reverse the removal procedure.
Tape drive
To remove the component:
1. Remove the access panel ("Access Panel" on page 12).
2. Disconnect the data and power cables from the rear of the tape drive.
3. Push up on the release lever and push the drive partially out through the front of the server.
4. Remove the tape drive.
To replace the component, reverse the removal procedure.
IMPORTANT: HP recommends installing the tape drive on a separate SCSI cable to avoid a decrease in
performance on other SCSI devices.
