Removal and replacement procedures 23
Internal two-bay hot-plug SCSI drive cage

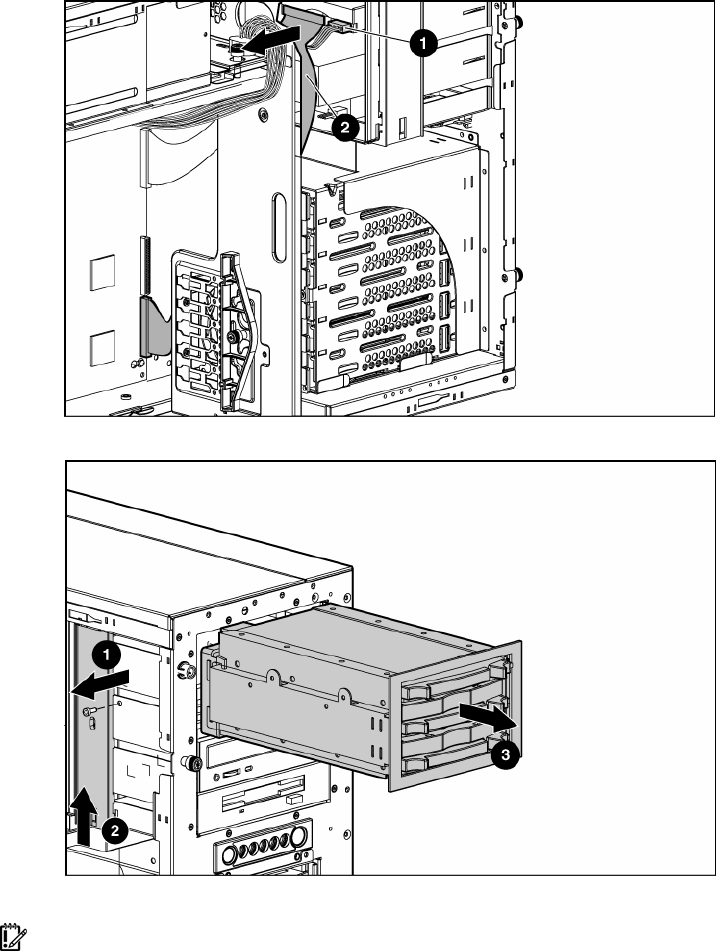

To remove the component:
1. Remove the access panel ("Access Panel" on page 12).
2. Access the removable media cage.
3. Disconnect the SCSI and power cables.
4. Remove the drive cage from the chassis.
To replace the component, reverse the removal procedure.
IMPORTANT: Be sure that the unit identification numbers (0 and 1) appear on the right side of the drive
cage front panel.
Refer to the HP Internal Two-Bay Hot-Plug SCSI Drive Cage Installation Instructions for additional
information.
