Removal and replacement procedures 30
• Do not attempt to recharge the battery.
• Do not expose the battery to temperatures higher than 60°C (140°F).
• Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or
water.
• Replace only with the spare designated for this product.
To remove the component:
1. Remove the access panel ("Access Panel" on page 12).

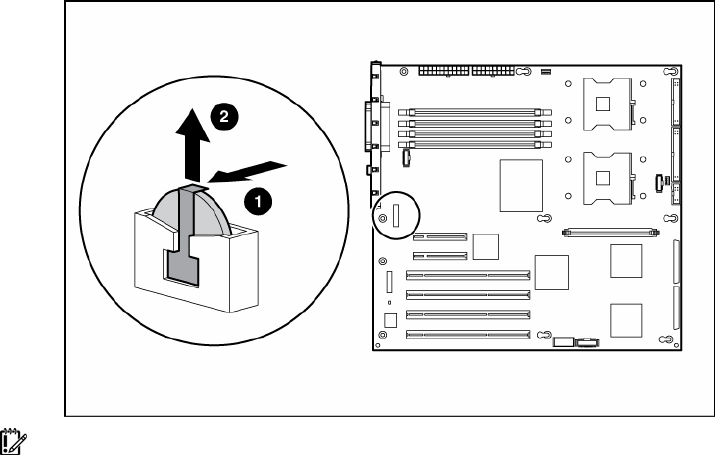

2. Remove the battery.
IMPORTANT: Replacing the system board battery resets the system ROM to its default configuration. After
replacing the battery, reconfigure the system through RBSU.
To replace the component, reverse the removal procedure.
For more information about battery replacement or proper disposal, contact an authorized reseller or an
authorized service provider.
System Board
To remove the component:
1. Remove the access panel ("Access Panel" on page 12).
2. Remove the system fans ("Redundant system fan" on page 19).
3. Remove the processors and heatsinks ("Processor and Heatsink" on page 24).
4. Disconnect all cables connected to the system board.
