Server component identification 39

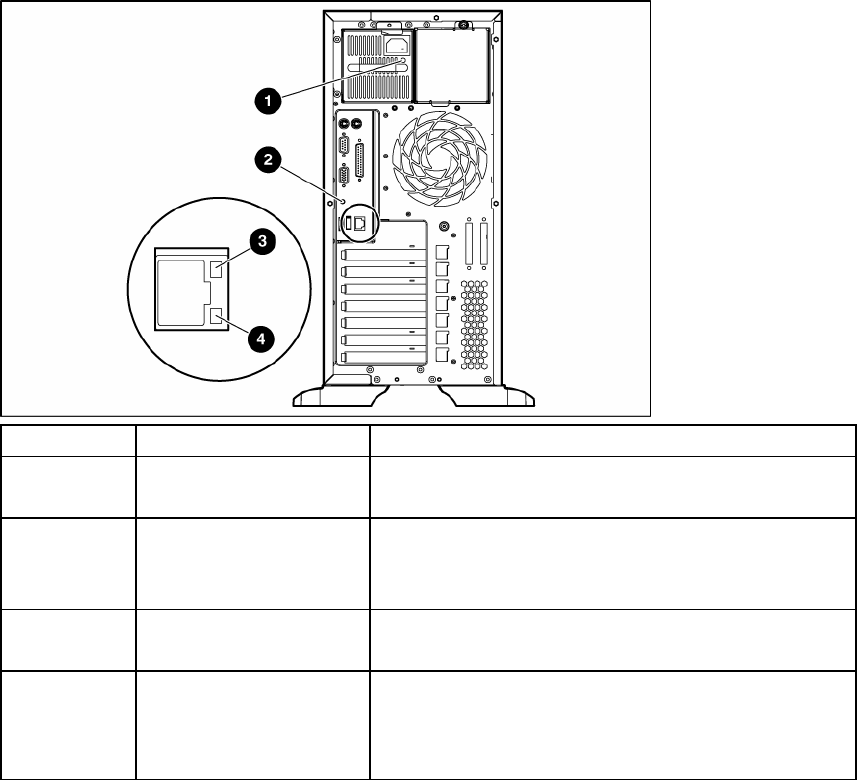

Rear Panel LEDs
Location LED Status
1 Power supply LED Off = No power or inadequate power supply
Green = Power supply is on and functioning
2 UID LED Blue = Activated
Off = Deactivated
Flashing = Remote inquiry
3 10/100/1000
NIC link LED
On = Link
Off = No Link
4 10/100/1000
NIC standby LED
On = Standby
Off = Activity
