Server component identification 44
Item LED Description Status
14 DIMM 1 status Off = DIMM 1 functioning
Amber = DIMM 1 failed
Hot-Plug SCSI IDs
The server supports single- or dual-channel SCSI hard drive configurations. The single-channel
configuration (simplex) supports up to six SCSI hard drives on one channel. The dual-channel
configuration (duplex) supports two SCSI hard drives on one channel (SCSI IDs 4 and 5) and up to four
SCSI hard drives on the other channel (SCSI IDs 0 through 3) with the duplex option.

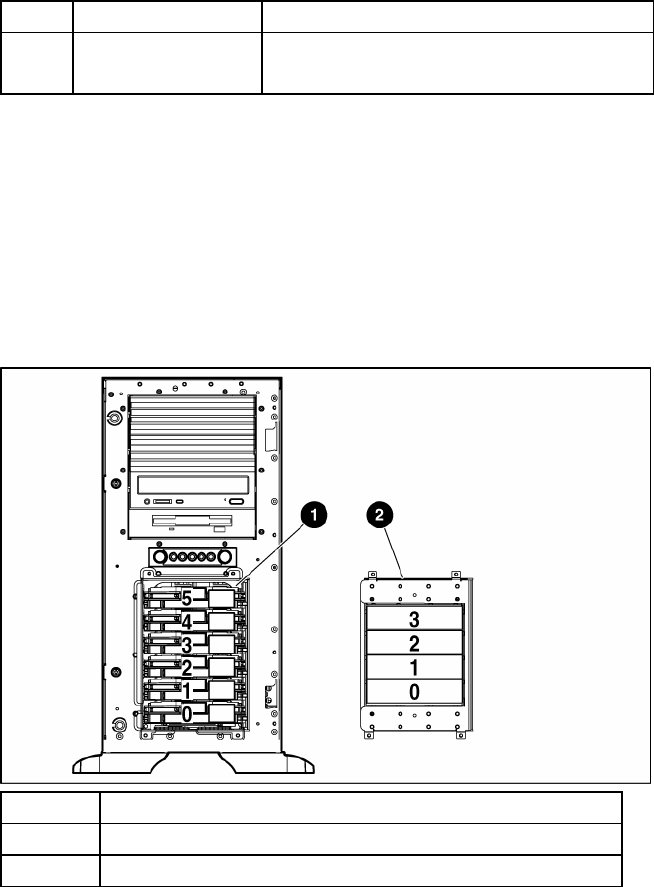

The SCSI IDs for both simplex and duplex configurations are illustrated. Always populate hard drive bays
starting with the lowest SCSI ID.
Item Description
1 Hot-plug SCSI hard drive cage
2 Non-hot-plug SCSI hard drive cage
