Replacing the Computer Access Panel
1. Lay the computer down on its large base for greater stability.
2. Align the tabs on the access panel with the slots on the chassis and push down on the access
panel while sliding it forward until it locks into place.

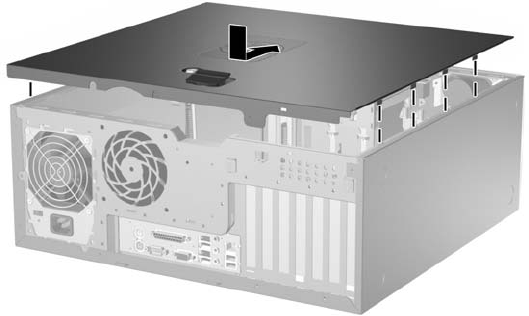

Figure 2-3 Replacing the Computer Access Panel
