HP ENVY Notebook Intel Models 17-n100 17-n199 3D camera Models 17-r100 17-r199 (worldwide) 3D camera Models m7-r100 m7-r199 (North America) - Maintenance and Service Guide
Table Of Contents
- Product description
- External component identification
- Illustrated parts catalog
- Removal and replacement procedures preliminary requirements
- Removal and replacement procedures for Customer Self-Repair parts
- Removal and replacement procedures for Authorized Service Provider parts
- Component replacement procedures
- Bottom cover
- Hard drive
- WLAN module
- Memory module
- USB board
- Fan
- Heat sink
- RTC battery
- Speakers (front)
- Subwoofer
- System board
- Solid State Drive
- Speaker (rear)
- LID board
- TouchPad assembly
- Fingerprint reader board (select products only)
- Power connector cable
- Display assembly – touch screen
- Display assembly – non-touch screen
- Component replacement procedures
- Computer Setup (BIOS), TPM, and HP Sure Start – Windows 10
- Using Setup Utility (BIOS) in Windows 8.1
- Using Setup Utility (BIOS) in Windows 7
- HP PC Hardware Diagnostics (UEFI) – Windows 10
- Using HP PC Hardware Diagnostics (UEFI) in Windows 8.1
- Backup and recovery – Windows 10
- Backing up, restoring, and recovering in Windows 8.1
- Backing up, restoring, and recovering in Windows 7
- Ubuntu Linux – Backing up, restoring, and recovering
- Specifications
- Power cord set requirements
- Recycling
- Index
Component Description
●
O: The computer is o or in Hibernation. Hibernation is a
power-saving state that uses the least amount of power.
(6) Optical drive Depending on your computer model, reads an optical disc or
reads and writes to an optical disc.

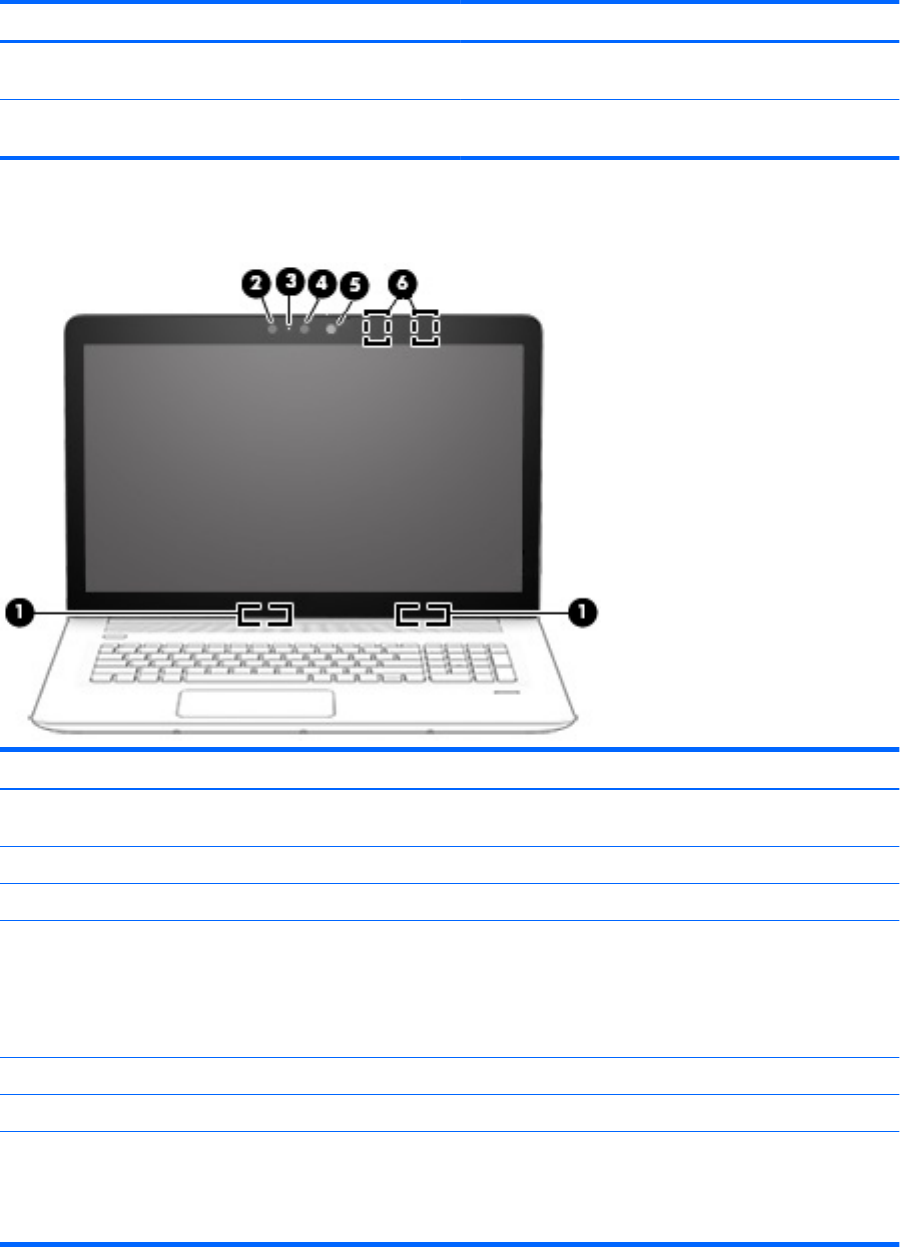

Display 3D camera (select products only)
Component Description
(1) WLAN antennas* (2) Send and receive wireless signals to communicate with wireless local
area networks (WLANs).
(2) IR camera sensor (select products only) A sensor used with the 3D camera.
(3) Webcam light On: The webcam is in use.
(4) 3D camera (select products only) A 3D camera captures 3D images and displays them on the computer
screen. It includes additional hardware (a 3D camera sensor and a 3D
laser projector) plus special software. To learn more about using a 3D
camera, open the Intel RealSense app Welcome to Intel RealSense.
To access the 3D camera apps, go to the Intel RealSense Technology
app.
(5) IR laser projector (select products only) A laser projector used with the 3D camera
(6) Internal microphones (2) Records sound.
*The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately around the
antennas free from obstructions.
For wireless regulatory notices, see the section of the Regulatory, Safety, and Environmental Notices that applies to your country or
region.
Display 3D camera (select products only) 7
