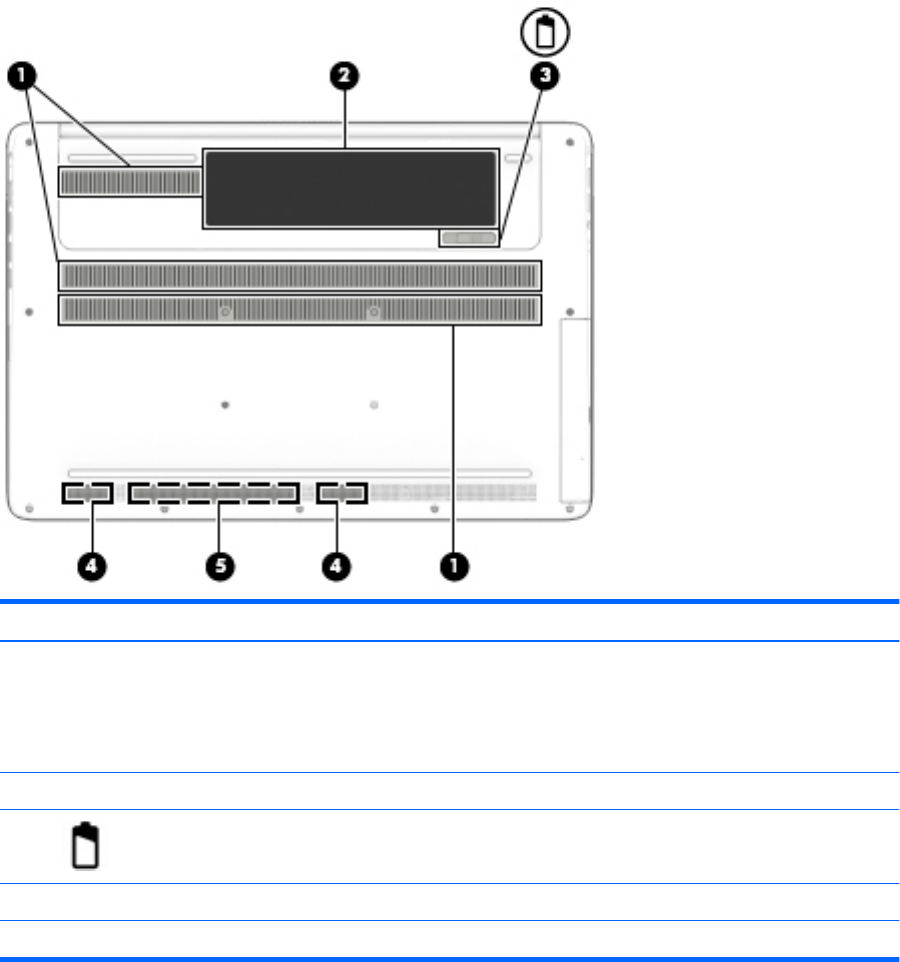

Bottom
Component Description
(1) Vents (3) Enable airow to cool internal components.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal
for the internal fan to cycle on and o during routine
operation.
(2) Battery bay Holds the battery.
(3) Battery release latch Releases the battery.
(4) Speakers (2) Produce sound.
(5) HP Triple Bass Reex Subwoofer Provides superior bass sound.
Bottom 13
