HP ENVY Notebook Intel Models 17-n100 17-n199 3D camera Models 17-r100 17-r199 (worldwide) 3D camera Models m7-r100 m7-r199 (North America) - Maintenance and Service Guide
Table Of Contents
- Product description
- External component identification
- Illustrated parts catalog
- Removal and replacement procedures preliminary requirements
- Removal and replacement procedures for Customer Self-Repair parts
- Removal and replacement procedures for Authorized Service Provider parts
- Component replacement procedures
- Bottom cover
- Hard drive
- WLAN module
- Memory module
- USB board
- Fan
- Heat sink
- RTC battery
- Speakers (front)
- Subwoofer
- System board
- Solid State Drive
- Speaker (rear)
- LID board
- TouchPad assembly
- Fingerprint reader board (select products only)
- Power connector cable
- Display assembly – touch screen
- Display assembly – non-touch screen
- Component replacement procedures
- Computer Setup (BIOS), TPM, and HP Sure Start – Windows 10
- Using Setup Utility (BIOS) in Windows 8.1
- Using Setup Utility (BIOS) in Windows 7
- HP PC Hardware Diagnostics (UEFI) – Windows 10
- Using HP PC Hardware Diagnostics (UEFI) in Windows 8.1
- Backup and recovery – Windows 10
- Backing up, restoring, and recovering in Windows 8.1
- Backing up, restoring, and recovering in Windows 7
- Ubuntu Linux – Backing up, restoring, and recovering
- Specifications
- Power cord set requirements
- Recycling
- Index
Item Component Spare part number
(18) Hard drive (does not include hard drive bracket or hard drive connector cable):
NOTE: For hard drive spare part information, see Mass storage devices on page 18
(19) Battery (4-cell, 41-Wh, 2.8-Ah, Li-ion) 807231-001
Battery (6-cell, 62-Wh, 2.8-Ah, Li-ion) 805095-001
(20) Base enclosure 813783-001

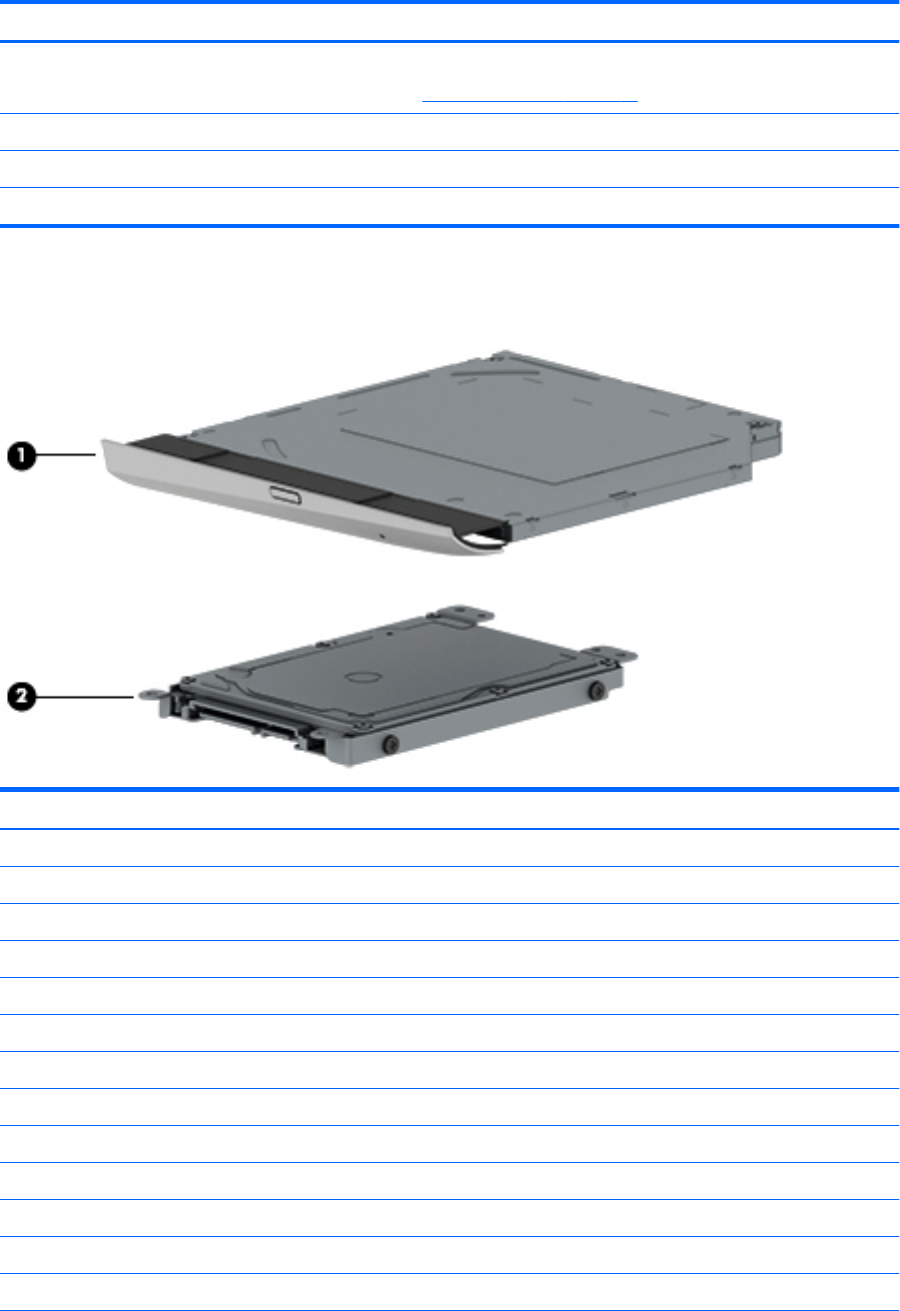

Mass storage devices
Item Component Spare part number
(1) Optical Drive DVD+/-RW Double-Layer SuperMulti 813784-001
Optical Drive Blu-ray Disc R/RW with SuperMulti 813785-001
(2) Hard drive (does not include hard drive bracket or hard drive connector cable):
750-GB, 5400-rpm, 9.5-mm 778190-005
1.0-TB, 5400-rpm, 9.5-mm 778192-005
1.0-TB hybrid, 5400-rpm, 9.5-mm 731999-005
2.0-TB, 5400-rpm, 9.5-mm 801808-005
Hard drive connector cable (not illustrated) 813795-001
Hard Drive Hardware Kit (not illustrated) 813796-001
Solid state drive (not illustrated).
256 GB M2 SATA-3 TLC 812708-001
512 GB M2 SATA-3 TLC 814224-001
512 GB M2 SATA-3 TLC 814224-001
18 Chapter 3 Illustrated parts catalog
