Item Component Spare part number
512 GB M2 SATA-3 TLC Value 820547-001
HDMI to VGA Adapter (not illustrated). 701943-001

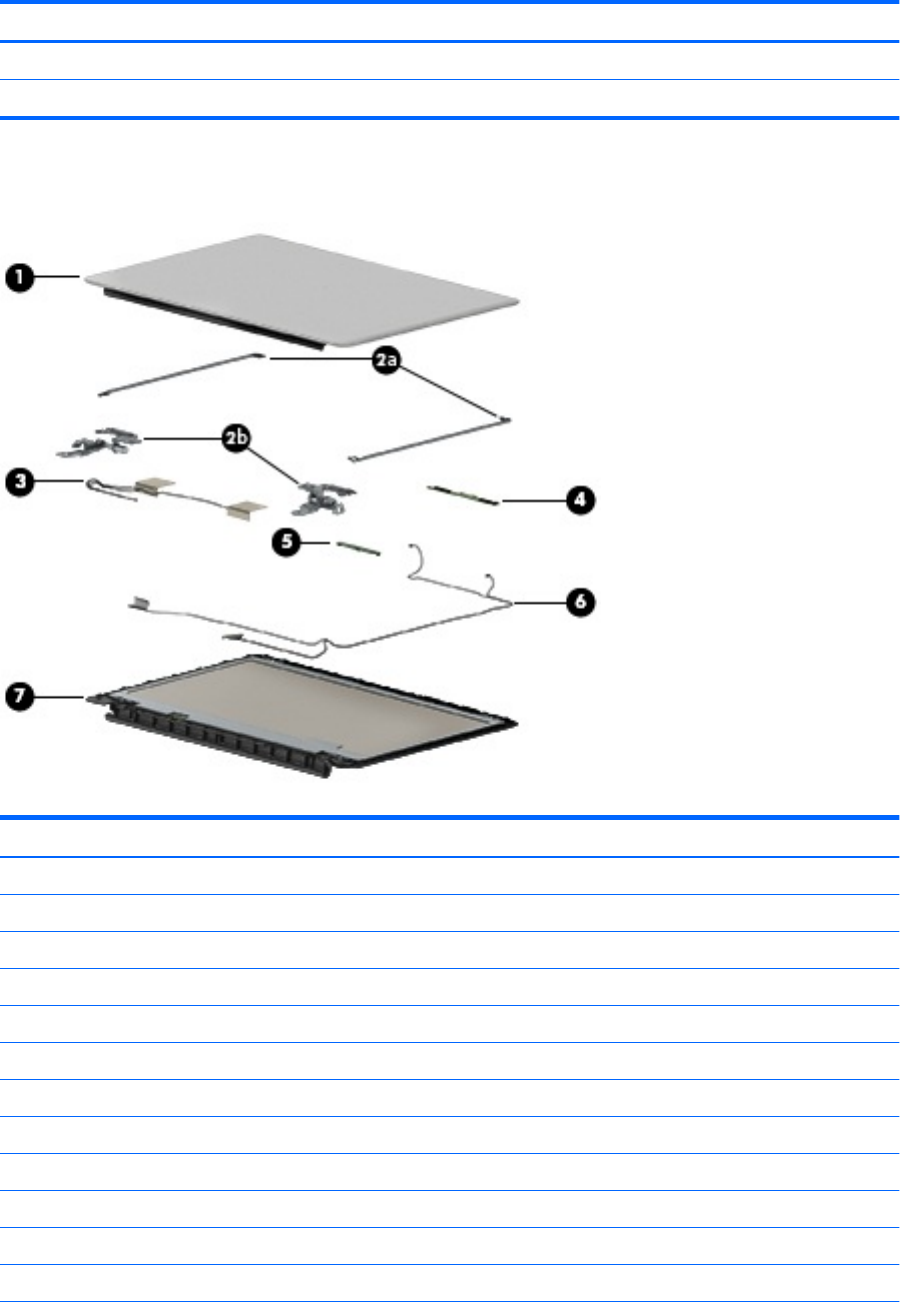

Display assembly subcomponents – touch screen
Item Component Spare part number
(1) Display enclosure 813789-001
Display enclosure 3D camera 832351–001
(2a) Brackets (left and right, includes screw) 818092-001
(2b) Hinges (left and right, includes screw covers) 813802-001
Hinges 3D camera (left and right, includes screw covers) 832356-001
(3) Antennas (includes wireless antenna cables and transceivers) 813787-001
(4) Touch control board 818094-001
(5) Webcam module 812715-001
Webcam module 3D camera 832360-001
Webcam module antennas 813787-001
(6) Display cable 813792-001
Display cable FHD 3D camera 832353-001
Display assembly subcomponents – touch screen 19
