Item Component Spare part number
Display cable 3D camera 832354-001
(7) Display Panel 813803-001
Display Panel FHD at 3D camera 832357-001
Bezel 3D camera 832352-001

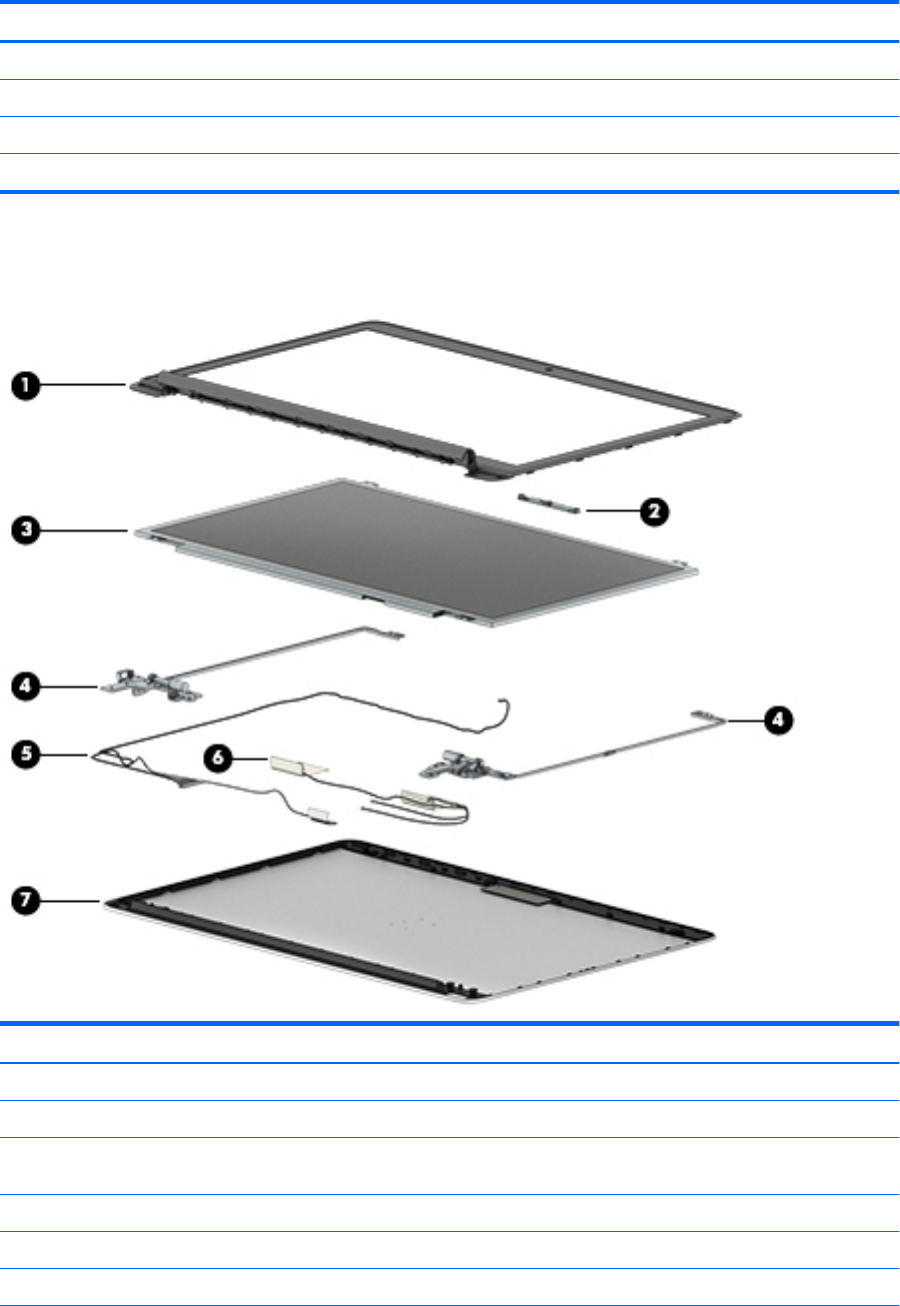

Display assembly subcomponents – non-touch screen
Item Component Spare part number
(1) Bezel 813790-001
(2) Webcam module 812714-001
(3) Raw display panel (17.3; includes touch panel, touch board, bezel, rubber supports, display
cable, webcam, and screws)
813808-001
(4) Hinges (left and right, includes screw and brackets) 813801-001
(5) Antennas (includes wireless antenna cables and transceivers) 813786-001
(6) Display/webcam cable 813791-001
20 Chapter 3 Illustrated parts catalog
