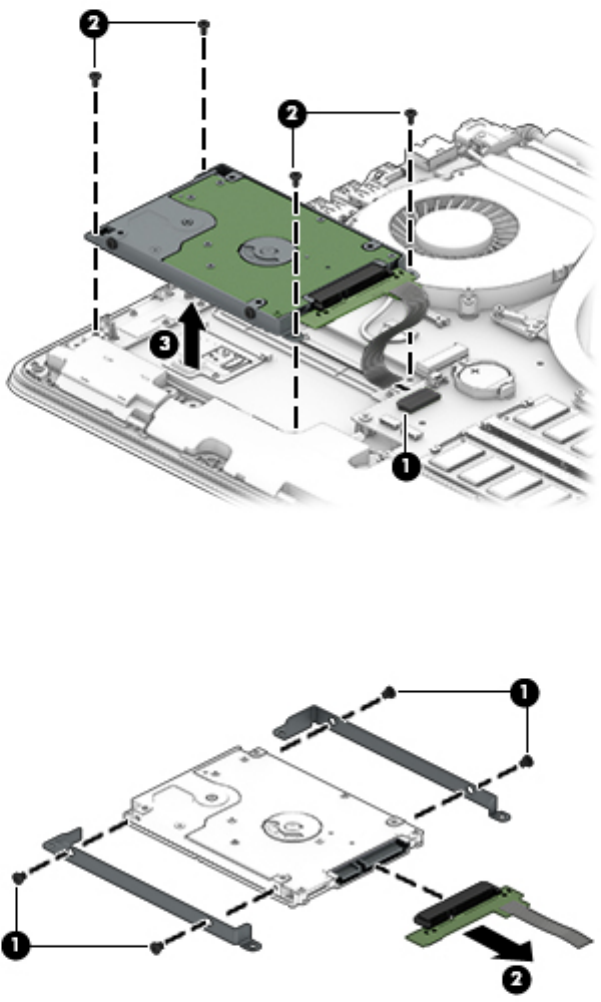

3. Lift up on the hard drive tab (3) to remove the hard drive assembly from the hard drive bay.
4. If it is necessary to disassemble the hard drive, perform the following steps:
a. Remove the four Phillips PM2.5×3.0 screws (1) that secure the hard drive brackets to the hard
drive.
b. Disconnect the hard drive connector cable (2) from the hard drive.
Reverse this procedure to install the RTC battery.
Component replacement procedures 35
