RTC battery
Description Spare part number
RTC battery 759981-001
Before removing the RTC battery, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see Battery on page 27).
5. Remove the optical drive (see Optical drive on page 28).
6. Remove the bottom cover (see Bottom cover on page 31).
Remove the RTC battery:
▲

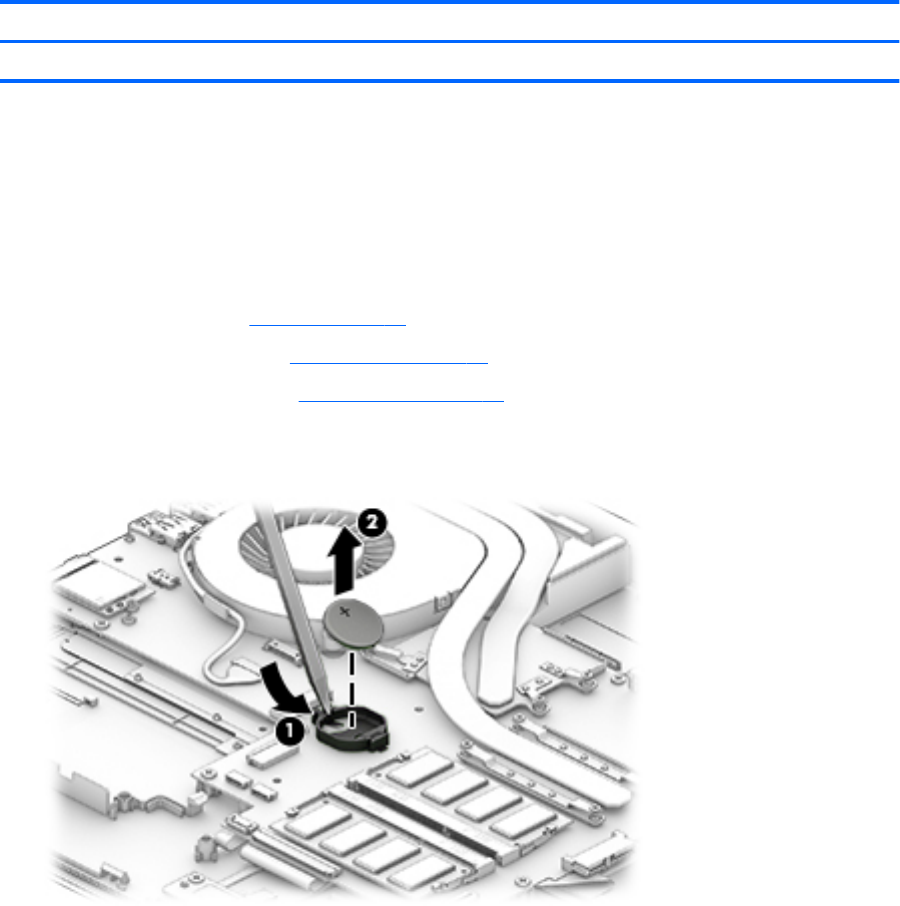

Carefully pry the disc cell RTC battery (1) from the system board, and then remove the battery (2).
Reverse this procedure to install the RTC battery.
46 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
