Speakers (front)
Description Spare part number
Speaker Kit 813805-001
Before removing the speakers, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see Battery on page 27).
5. Remove the optical drive (see Optical drive on page 28).
6. Remove the bottom cover (see Bottom cover on page 31).

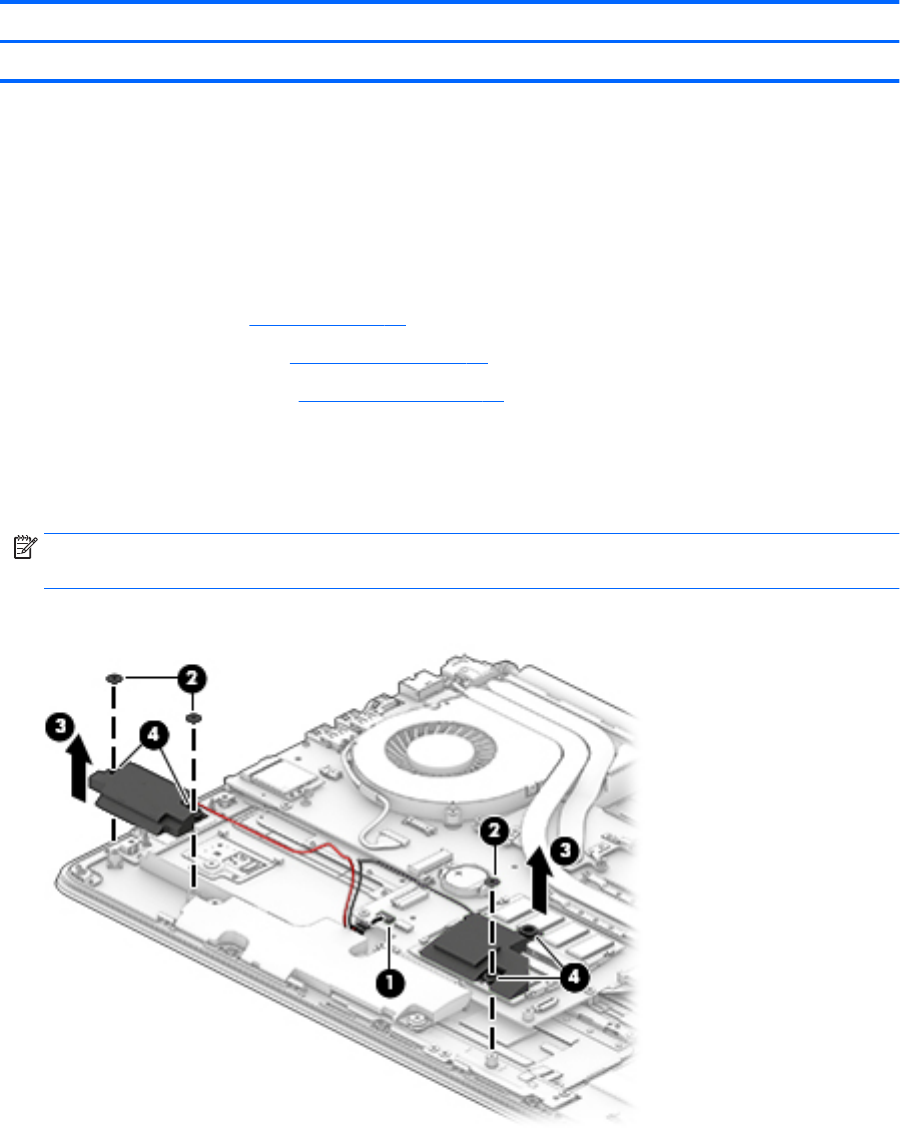

Remove the speakers:
1. Disconnect the speaker cable (1).
2. Remove the three broadhead Phillips PM2.0×2.0 screws (2) that secure the speaker to the computer.
NOTE: The speaker includes rubber isolators (4) around the screws. These isolators are crucial to the
performance of the speakers.
3. Remove the speaker (3).
Reverse this procedure to install the speakers.
Component replacement procedures 47
