LID board
Description Spare part number
LID board 813897-001
LID cable 823506-001
Before removing the LID board, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see Battery on page 27).
5. Remove the optical drive (see Optical drive on page 28).
6. Remove the bottom cover (see Bottom cover on page 31).
7. Remove the hard drive (see Hard drive on page 34).
8. Remove the front speaker (Speakers (front) on page 47).
9. Remove the system board (see System board on page 49).

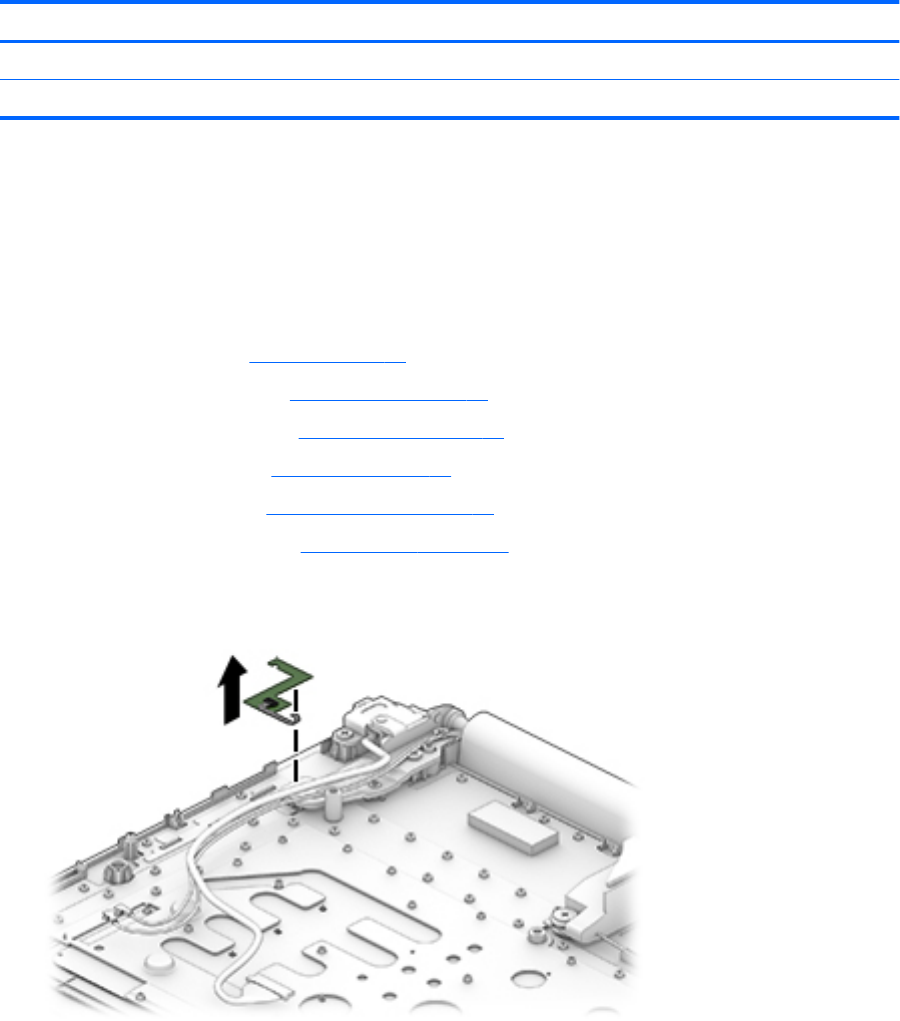

Remove the LID board:
▲
Disconnect the LID board cable from the base enclosure.
Reverse this procedure to install the LID board.
