HP ENVY Notebook Intel Models 17-n100 17-n199 3D camera Models 17-r100 17-r199 (worldwide) 3D camera Models m7-r100 m7-r199 (North America) - Maintenance and Service Guide

Power connector cable
Description Spare part number
Power connector 813797-001
Power connector cable 813804-001
Before removing the power connector cable, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see Battery on page 27).
5. Remove the optical drive (see Optical drive on page 28).
6. Remove the bottom cover (see Bottom cover on page 31).
7. Remove the hard drive (see Hard drive on page 34).
8. Remove the speakers (see Speakers (front) on page 47).
9. Remove the system board (see System board on page 49).
Remove the power connector cable:
NOTE:
▲

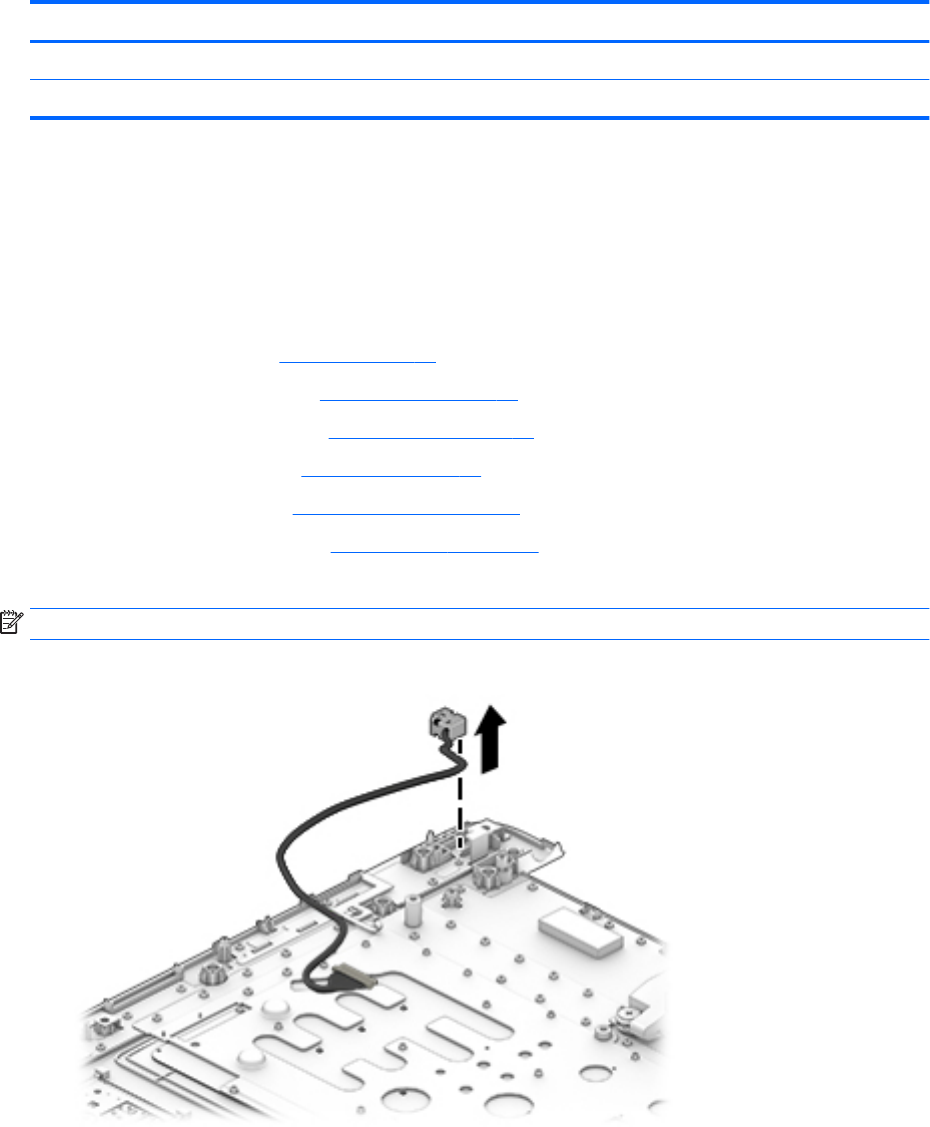

Remove the power connector from the computer.
Reverse this procedure to install the power connector cable.
Component replacement procedures 59
