CAUTION: Be sure to support the display as you remove the screws to avoid the display falling and
sustaining damage.

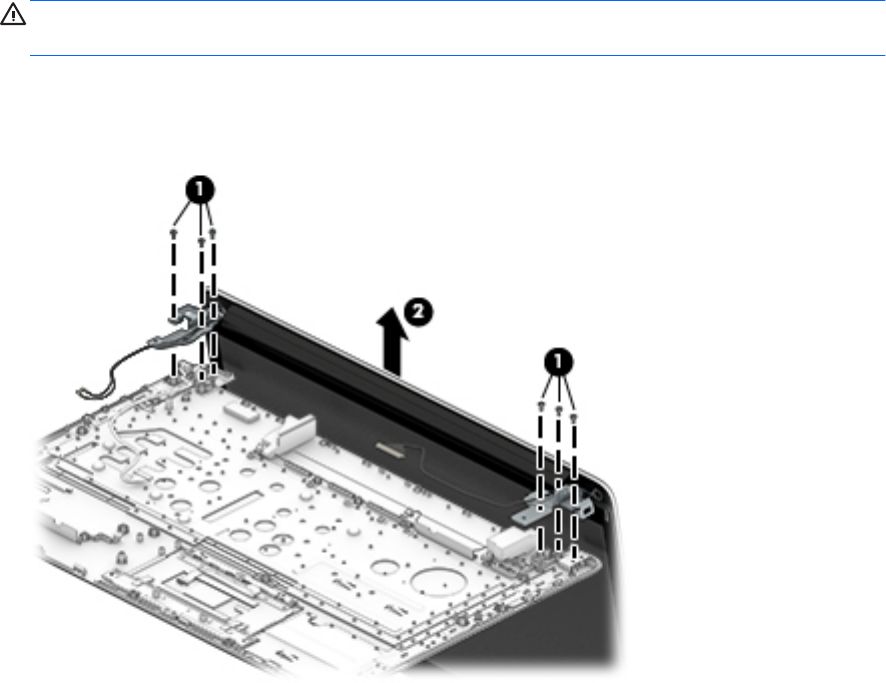

2. Remove the six Phillips PM2.5×4.0 screws (1) (three on each hinge) that secure the display assembly to
the computer.
3. Separate the display from the computer (2).
If it is necessary to replace any of the display assembly subcomponents:
1. To remove the display rear cover:
a. Remove the two screw covers (1) and two Phillips PM2.5×3.5 screws (2) that secure the display
rear cover to the display.
Component replacement procedures 61
