f. Note the routing of the antenna cables and display cable for reassembly. The antenna cable is
located on the bottom of the base enclosure.

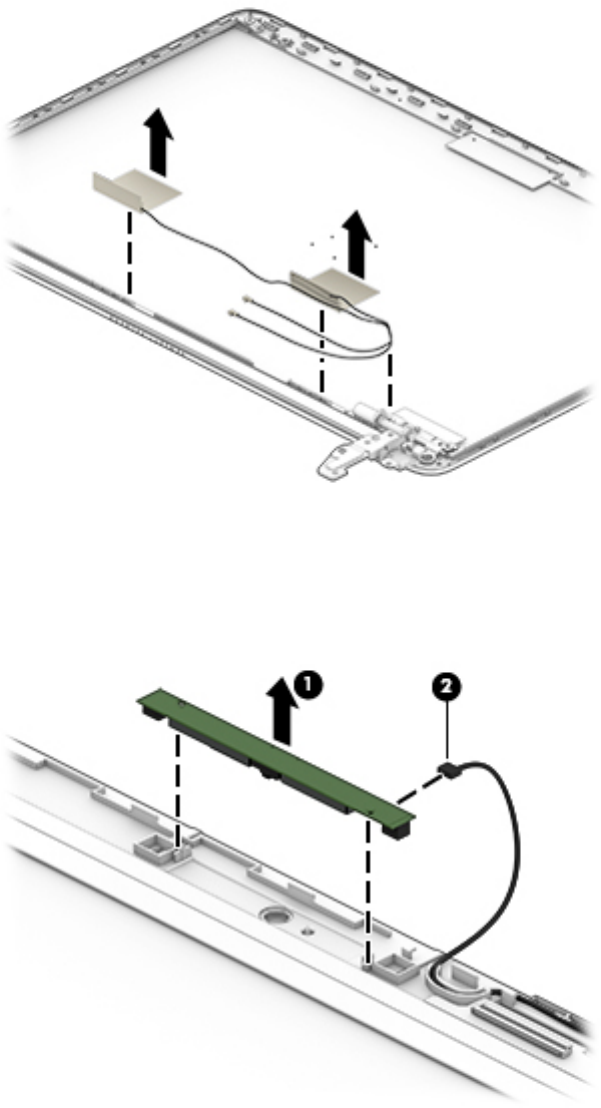

2. To remove the webcam/microphone module:
a. Position the back cover with the top edge toward you.
b. Lift the tape from atop the webcam (1).
c. Disconnect the cable (2) from the webcam module.
3. To remove the display/webcam cable:
a. Disconnect the cable from the webcam module and touch control board (1).
Component replacement procedures 63
