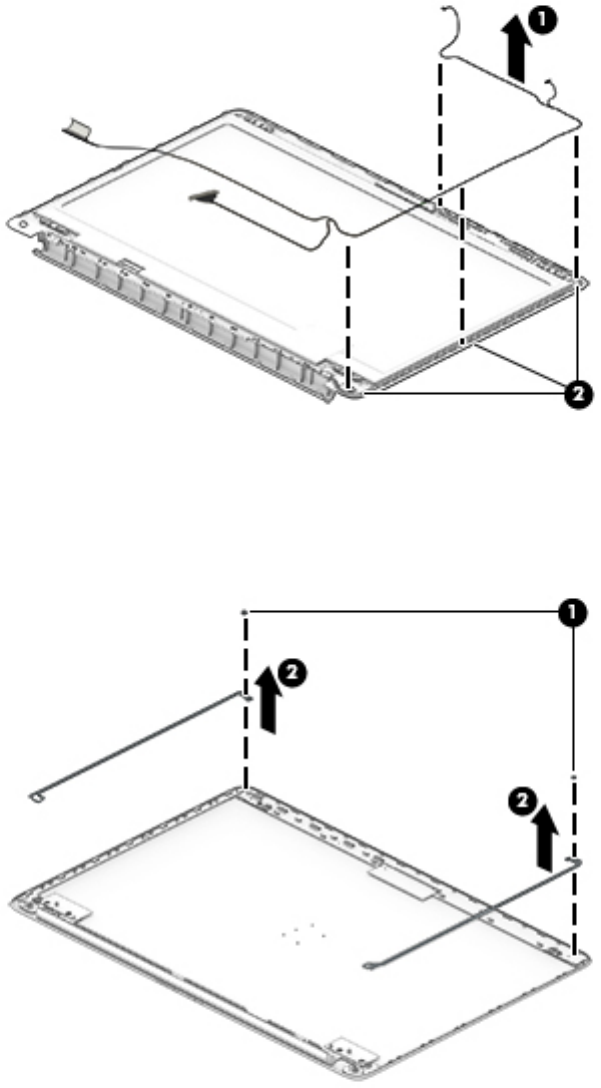

b. Remove the cable (2) from the channels in the back cover.
4. To remove the display hinges:
a. Remove the two Phillips PM2.5×2.0 screws (1) from the bottom of the hinges, and the two Phillips
PM2.0×2.5 screws (2) from the top of the hinges that secure the display hinges to
the display enclosure.
b. Remove the display hinges.
5. If replacing the display cover, be sure that the subcomponents (including the webcam/microphone
module, the antenna receivers, and all associated cables and hardware) are transferred to the new cover.
Reverse this procedure to install the display assembly.
64 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
