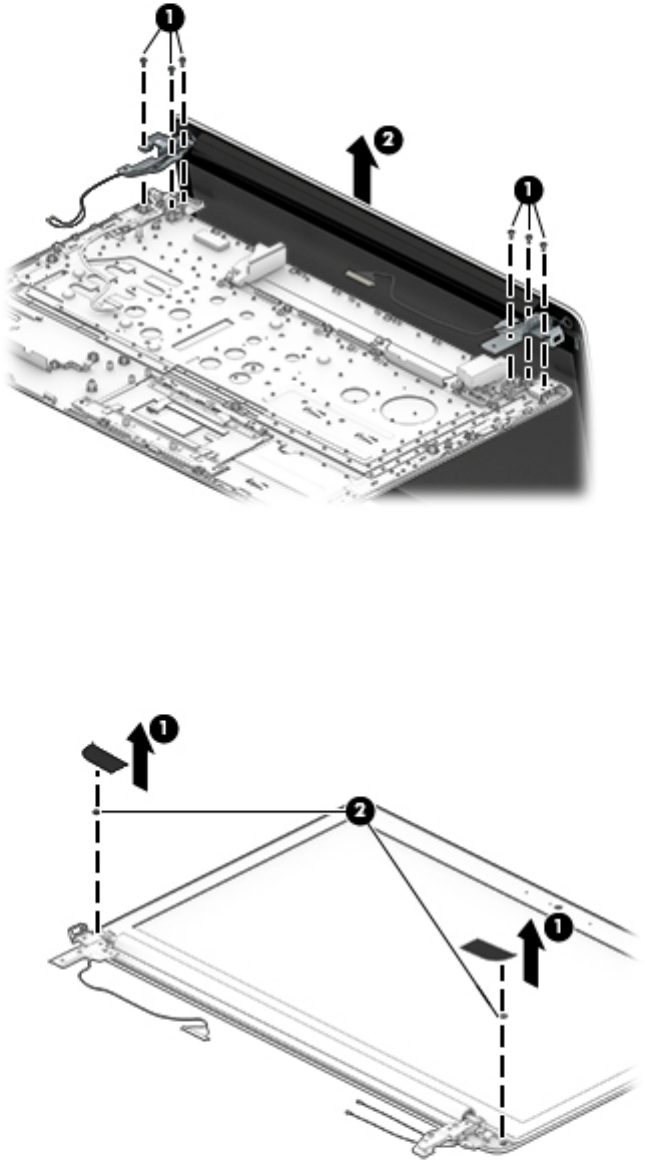

4. Separate the display from the computer.
If it is necessary to replace any of the display assembly subcomponents:
1. Place the display on a at surface with the panel toward you.
a. Remove the two screw covers (1) and two Phillips PM2.5×3.5 screws (2) that secure the display
rear cover to the display.
b. Remove the display bezel (2).
2. To remove the webcam/microphone module:
66 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
