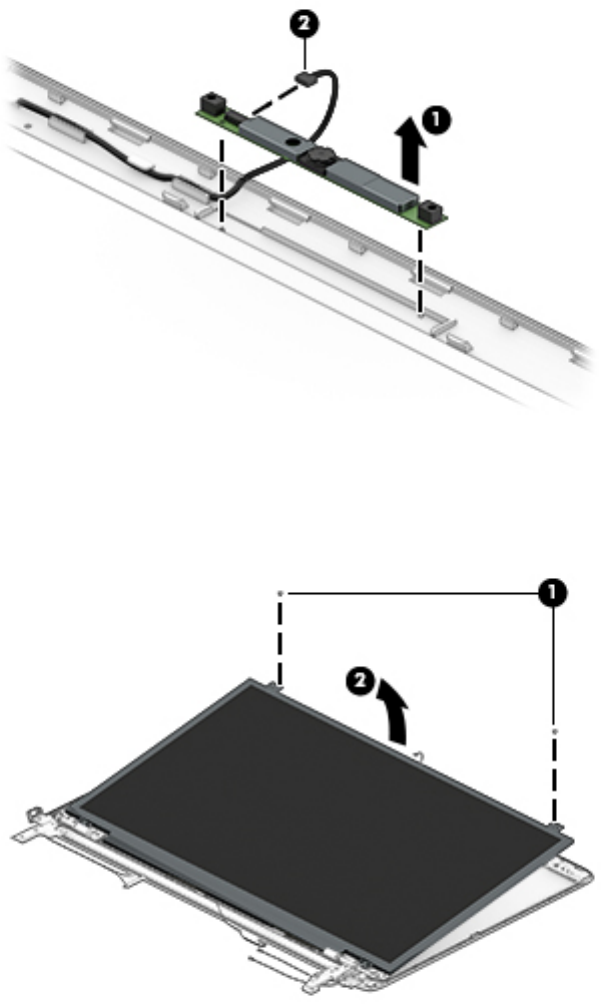

a. Position the display assembly with access to the top edge.
b. Lift the webcam/microphone module enough to gain access to the connector (1). (The module is
attached to the display enclosure with double-sided tape.)
c. Disconnect the cable (2) from the module.
3. To remove the display panel:
a. Remove the two Phillips PM2.0×3.0 screws (1) that secure the display panel to the enclosure.
b. Rotate the display panel out of the enclosure (2) to gain access to the display cable connection on
the back of the panel.
c. On the back of the display panel, release the adhesive strip (1) that secures the display panel cable
to the display panel, and then disconnect the cable (2).
Component replacement procedures 67
