d. Remove the display panel from the computer (3).

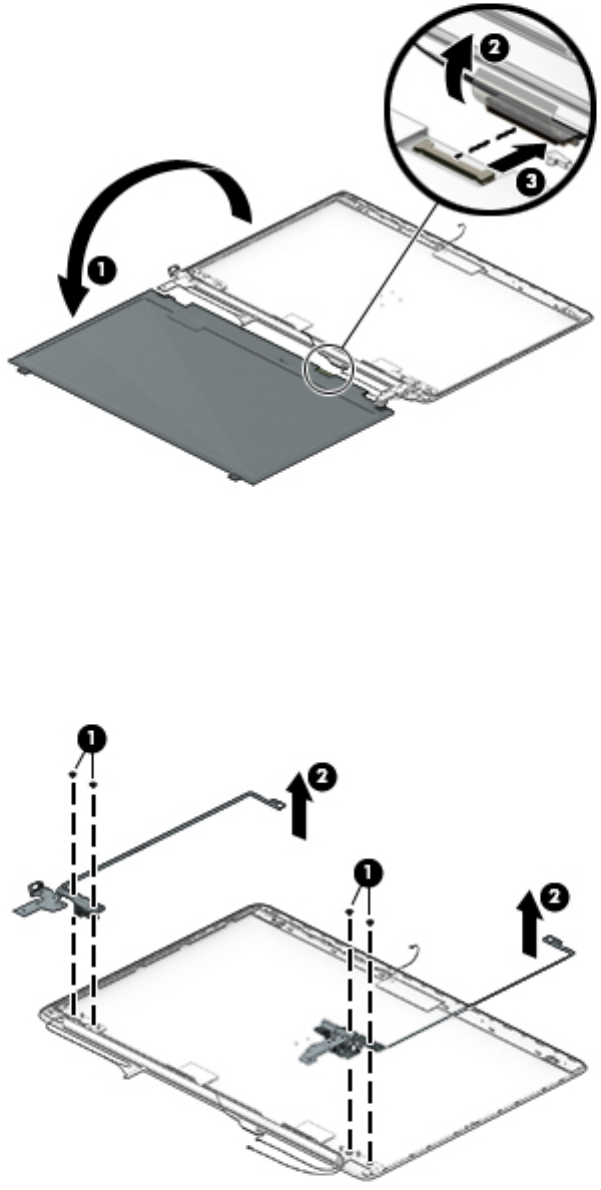

4. To remove the display hinges:
a. Remove the eight Phillips PM2.5×3.5 screws (1) (four per hinge) that secure the hinges to the sides
of the display enclosure.
b. Remove the six broadhead Phillips PM2.0×3.0 screws (2) (three per hinge) that secure the hinges
to the bottom of the display enclosure.
c. Remove the display hinges.
68 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
