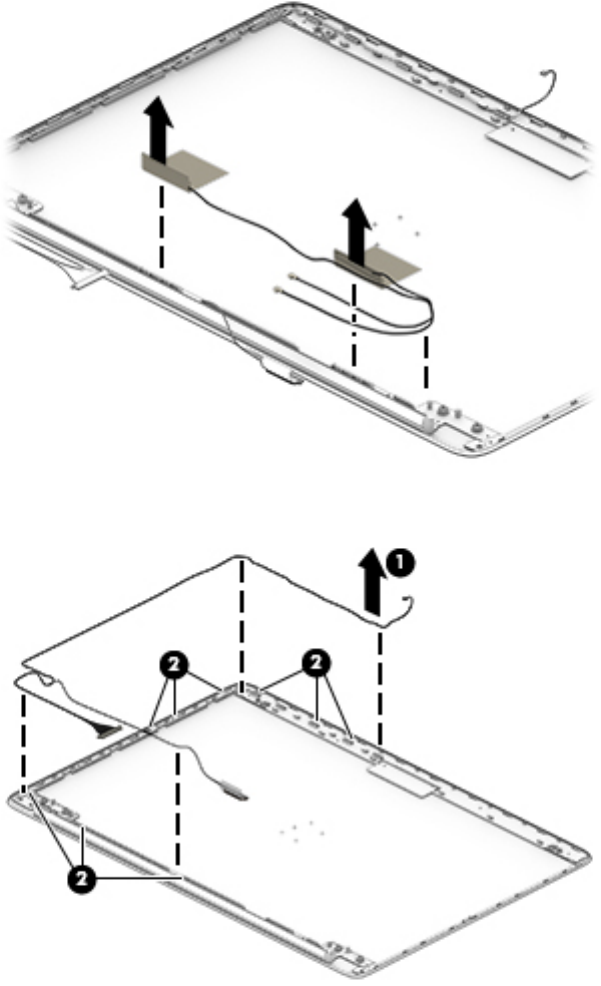

5. To remove the wireless antenna cables and transceivers, peel the transceivers from the top of the
enclosure , release the wireless antenna cables from the clips built into the display enclosure , and then
remove the cables and transceivers .
6. To remove the display/webcam cable, remove the cable from the clips built into the display enclosure
(1), and then remove the cable from the display enclosure (2).
7. If replacing the display enclosure, be sure that the subcomponents (including the webcam/microphone
module, the antenna receivers, and all associated cables and hardware) are transferred to the new
enclosure.
Reverse this procedure to install the display assembly.
