HP Z230 models:

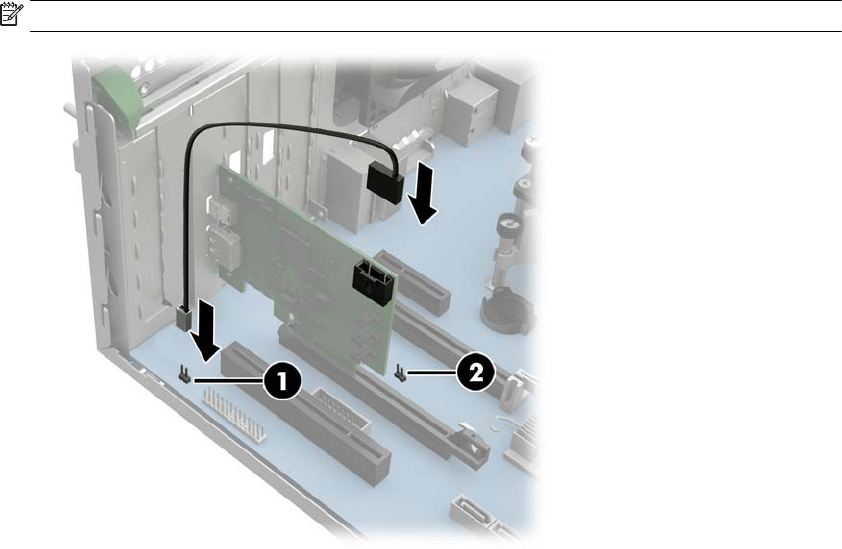

Plug the cable into the system board connector labeled E102 as follows:
(1) Small form factor models (near edge of board)
(2) Tower models (between slots 3 and 4)
NOTE: System board appearance may vary.
Step 2—Installing the Thunderbolt add-in card 7
