Table Of Contents

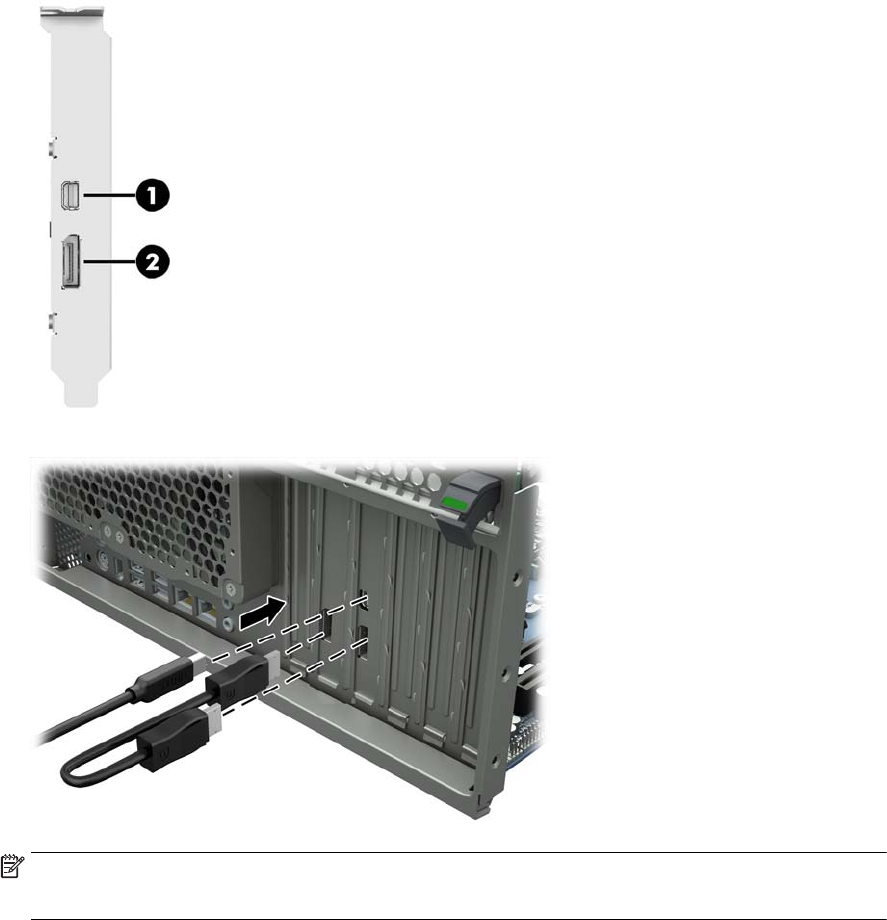

6. The back of the Thunderbolt add-in card includes two connectors:
(1): Thunderbolt cable connector
(2): DisplayPort cable connector
Attach the DisplayPort cable and the Thunderbolt cable to the back of the add-in card.
NOTE: Plug the other end of the Thunderbolt cable into a Thunderbolt device.
Plug the other end of the DisplayPort cable into a graphics card.
8 Thunderbolt 2 PCIe Card Installation
