FC Configuration Procedures
5–11HSG80 ACS Solution Software Version 8.7 for Compaq Tru64 UNIX Installation and
Configuration Guide
5–11

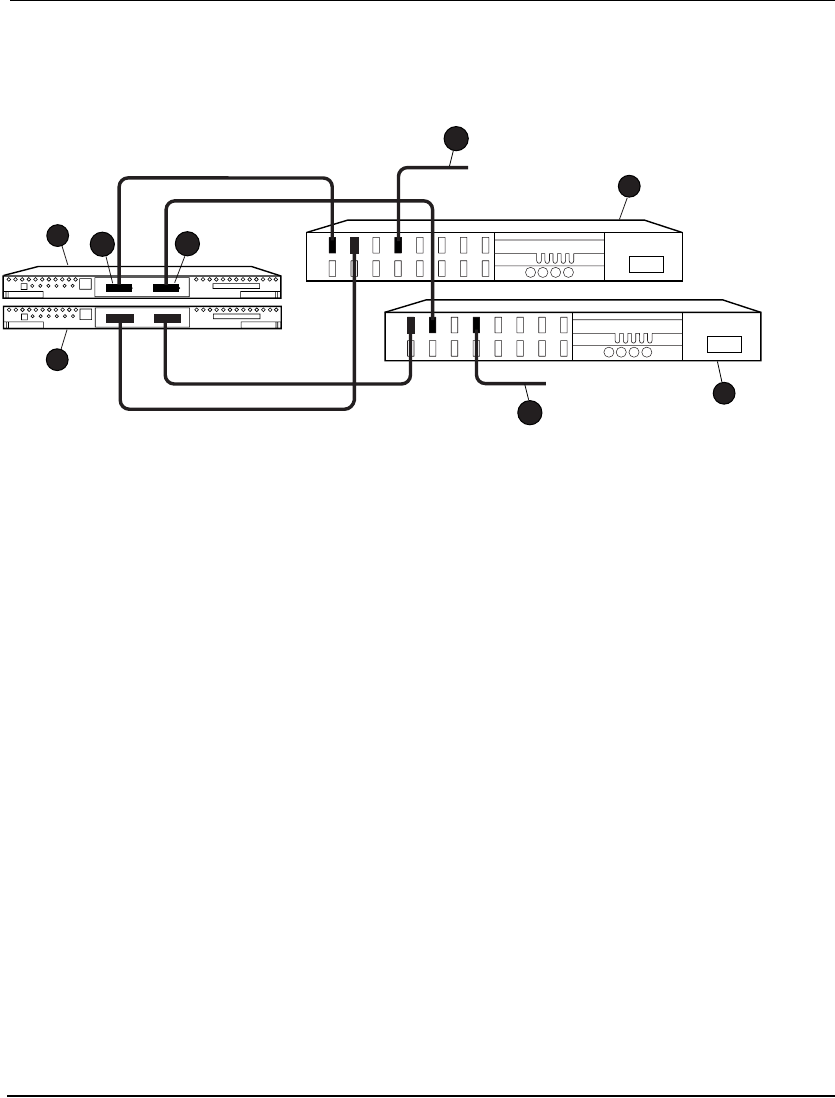

Figure 5–3 shows a controller pair with failover cabling showing one HBA per server
with HSG80 controller in transparent failover mode.
Figure 5–3: Controller pair failover cabling
Configuring a Controller Pair Using CLI
To configure a controller pair using CLI involves the following processes:
• Configure Controller Settings.
• Restart the Controller.
• Set Time and Verify All Commands.
• Plug in the FC Cable and Verify Connections.
• Repeat Procedure for Each Host Adapter.
• Verify Installation.
1. Enter a SHOW THIS command to verify the node ID:
SHOW THIS
See “Worldwide Names (Node IDs and Port IDs),” page 1–27, for the location of
the sticker.
1 Controller A
2 Controller B
3 Host port 1
4 Host port 2
5 Cable from the switch to the host FC adapter
6 FC switch
CXO6887B
6
6
5
5
1
2
4
3
