Installing, Configuring, and Removing the Client
B–11HSG80 ACS Solution Software Version 8.7 for Compaq Tru64 UNIX Installation and
Configuration Guide
B–11

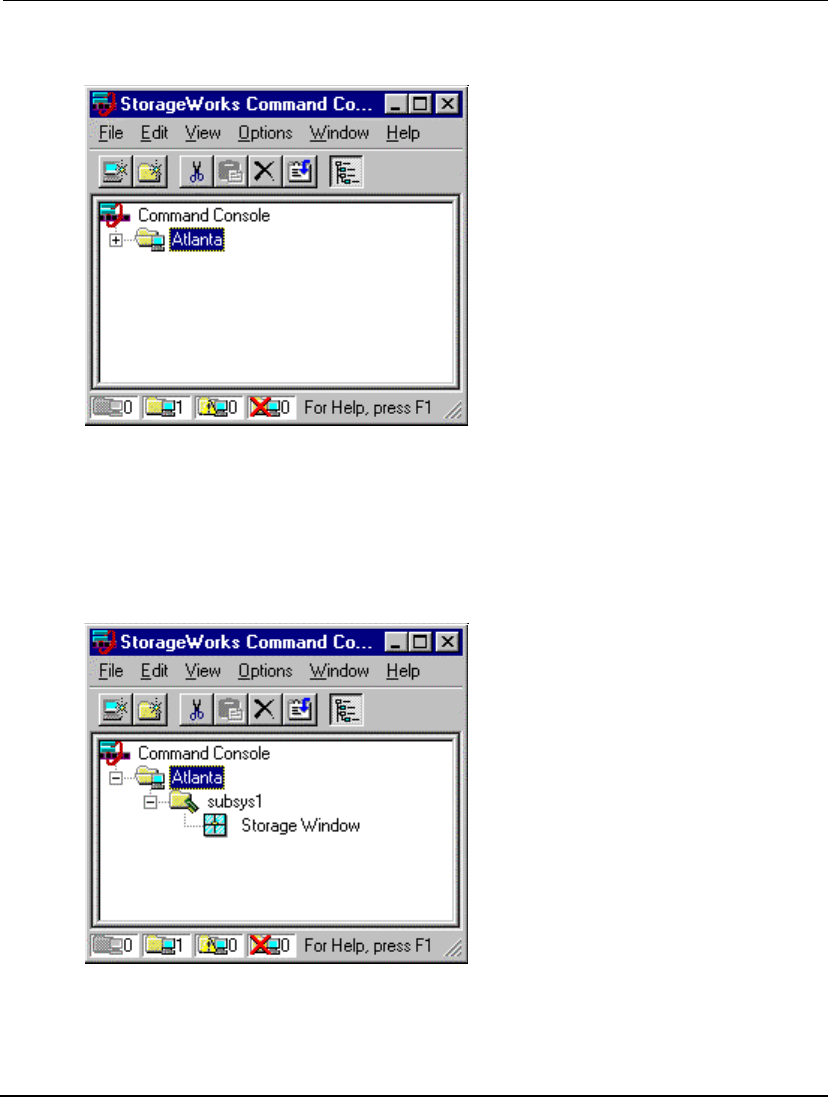

Figure B–2: Navigation window showing storage host system “Atlanta”
6. Click the plus sign to expand the host icon. When expanded, the Navigation
Window displays an icon for the storage subsystem. To access the Storage
Window for the subsystem, double-click the Storage Window icon.
Figure B–3: Navigation window showing expanded “Atlanta” host icon
