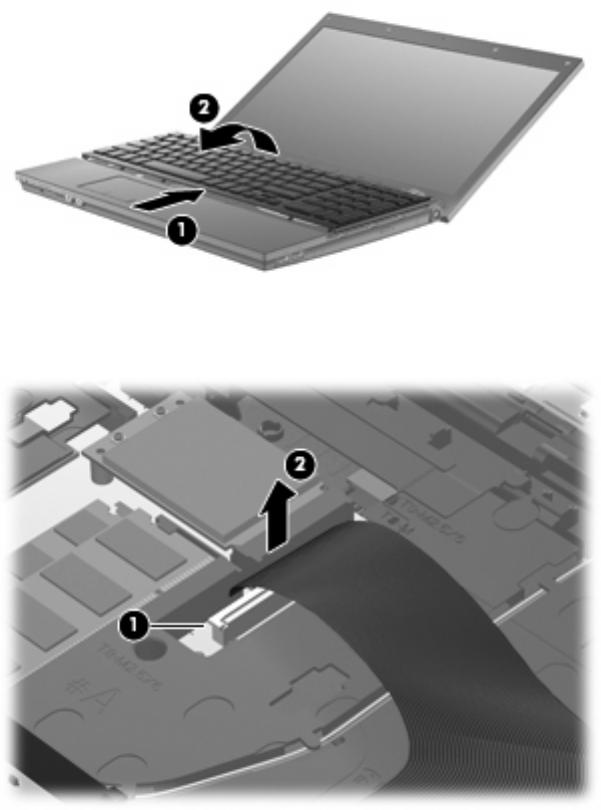

6. Slide the keyboard back toward the display (1), and then rotate it forward (2) until it rests upside-
down on the palm rest.
7. Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached, and
disconnect the keyboard cable (2) from the system board.
8. Remove the keyboard.
Reverse this procedure to install the switch cover and keyboard.
Component replacement procedures 67
